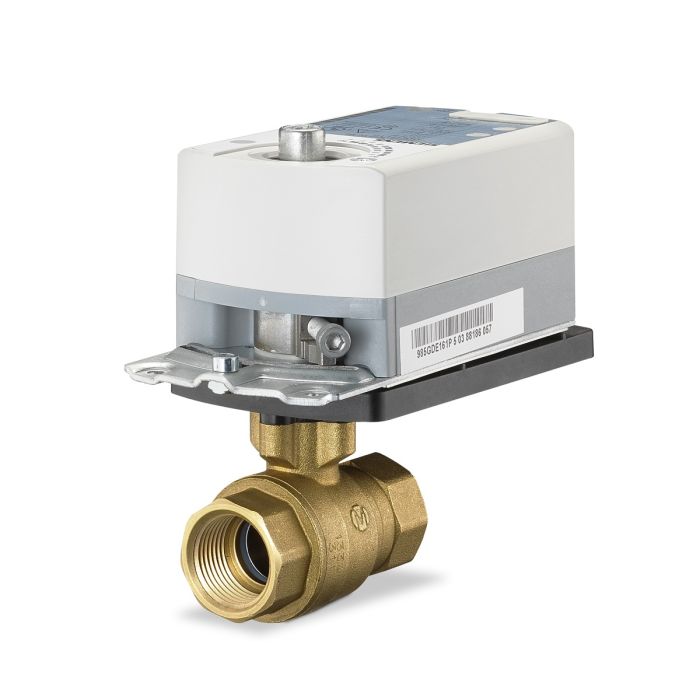

Siemens 171C-10311 Ball Valve Assembly, 2 Way, 3/4 in.

Product Description

The Siemens 171C-10311 is a 3/4 inch 2-way ball valve assembly designed for efficient fluid control. It features a direct coupled actuator that allows for modulating control and built-in feedback. This assembly is suitable for applications involving hot or chilled water and can handle up to 50% glycol solutions.

• Blow-out proof stem designed to withstand high pressure.
• Universal mounting plate for easy installation.
• Operating handle for manual operation in case of power failure.

Product Highlights

This valve assembly provides reliable performance in HVAC systems and is engineered for robust operation.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 171C-10311

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Water, 50% Water-Glycol Solution
• Power Consumption: 3.3 VA (Modulating), 2.3 VA (Three-Position)
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F to 130 F (-30 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
