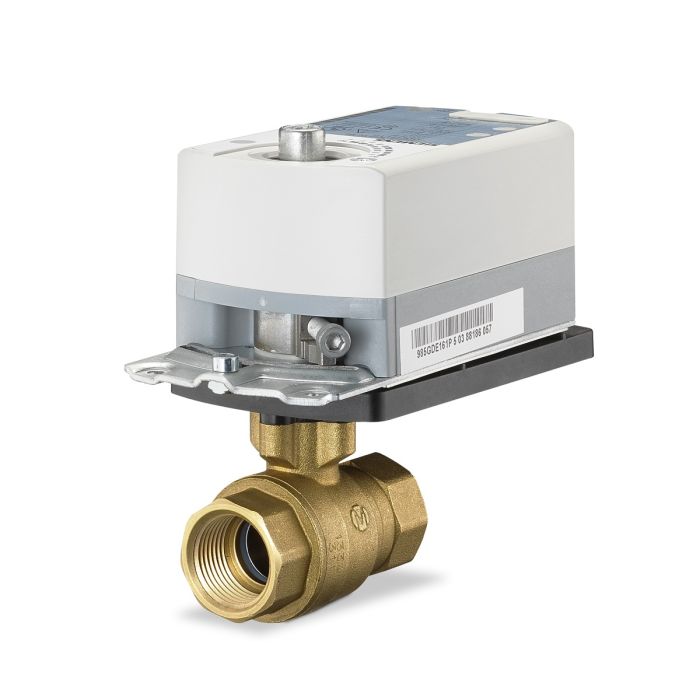

Siemens 171C-10300S Ball Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens Ball Valve Assembly, MPN 171C-10300S, is a reliable two-way valve that is essential in HVAC systems. This valve features a half-inch NPT connection and is designed for use in modulating control systems.

• Blow-out proof stem for high pressure durability
• Universal mounting plate for easy installation
• Built-in feedback for monitoring

Product Highlights

This ball valve utilizes a stainless-steel ball and stem and is direct coupled to an actuator that operates at 24 VAC for modulating control. It includes a thermal barrier for optimal performance.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 171C-10300S

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Water, 50% Water-Glycol Solution
• Power Consumption: 3.3 VA (Modulating), 2.3 VA (Three-Position)
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 130 F (-30 C To 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
