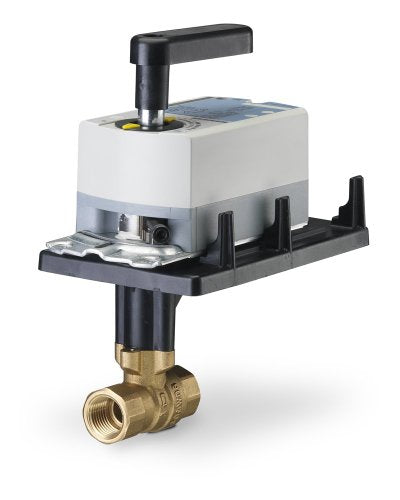

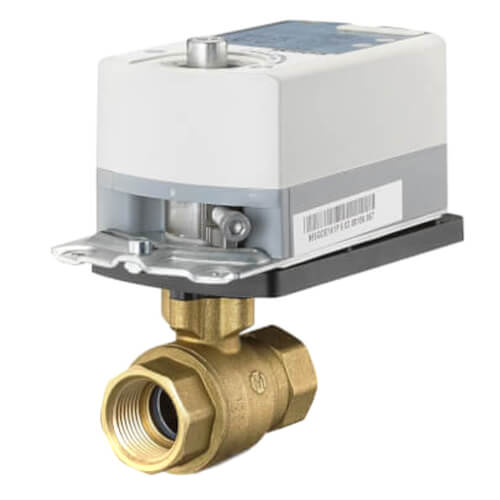

SIEMENS 171A-10311 2-Way 3/4-Inch 25 Cv Ball Valve with Brass Stem and Actuator 200 Psi Close-Off

Product Description

The Siemens 171A-10311 2-Way 3/4-Inch Ball Valve is an essential component for effective water flow control in various HVAC systems. Engineered by Siemens, a leader in heating, ventilation, and air conditioning technology, this valve ensures reliable and efficient operation.

• Robust brass construction with a chrome-plated brass ball for enhanced durability.
• Designed for applications involving hot or chilled water and glycol solutions up to 50%.
• Features a Floating Control fail-in-place actuator ensuring continuous operation even during power interruptions.

Product Highlights

This valve assembly is equipped with a 25 Cv flow capacity and a high 200 psi close-off capability, making it suitable for high-pressure systems. The valve's 2-way configuration with normally open positioning allows for automatic control of fluid passage.

Product Information

Standard Information

• Brand: Siemens
• Model: 171A-10311
• Type: Ball Valve Assembly

Technical Specifications

• Connection Type: NPT Female
• Medium Temperature: 35 to 250 degrees Fahrenheit
• Actuator Type: Electronic, Floating Control
• Body Material: Brass
• Internal Seals: EPDM O-rings
• Leakage Rate: ANSI Class IV
• Supply Voltage: 24 VAC
