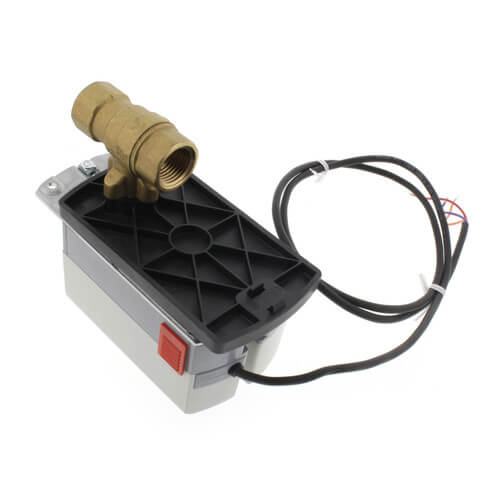

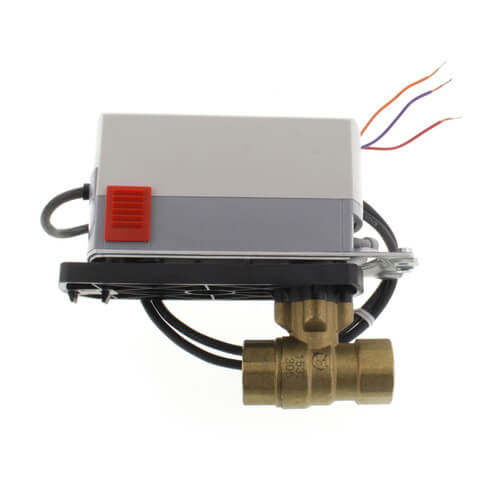

Siemens 171A-10305 Ball Valve Assembly 0.5 inch 2-Way 4 CV + GDE131.1P Actuator

Product Description

The Siemens 171A-10305 Ball Valve Assembly offers reliable 2-way flow control in HVAC systems. This ball valve features a 0.5 inch size and a flow capacity of 4 Cv. It comes with a floating non-spring return actuator GDE131.1P for precise damper control.

• 2-way valve pattern
• Flow capacity of 4 Cv
• Floating non-spring return actuator

Product Highlights

This 2-way ball valve assembly by Siemens includes a chrome-plated brass ball and a brass stem. It is equipped with a floating actuator that ensures smooth operation even in case of power failure. Ideal for controlling HVAC dampers in both variable and constant air volume applications.

Product Information

Standard Information

• Brand: Siemens
• Model: 171A-10305

Technical Specifications

• Valve size: 0.5 inch
• Flow capacity: 4 Cv
• Valve pattern: 2-way
• Body rating: 600 psi
• Maximum temperature: 250 degrees Fahrenheit
• Connection type: FNPT x FNPT
• Actuator type: Floating
• Fail safe mode: Non-Spring Return
