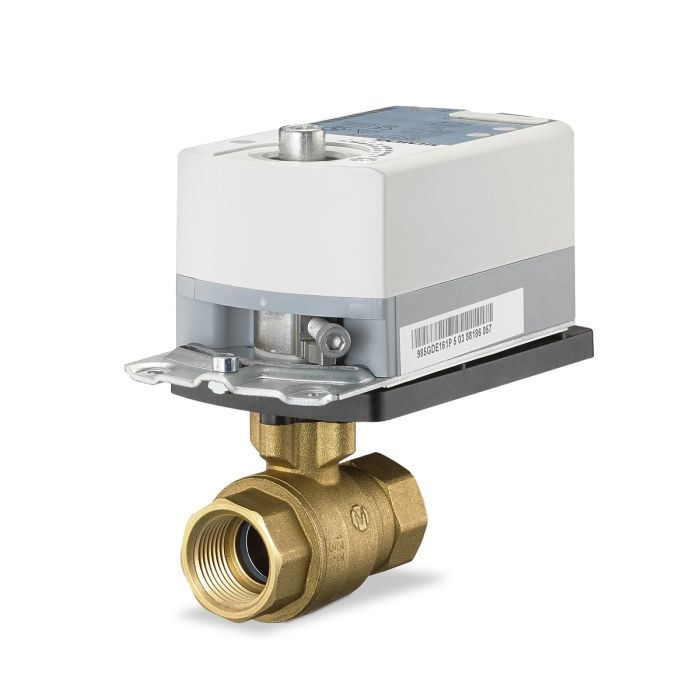

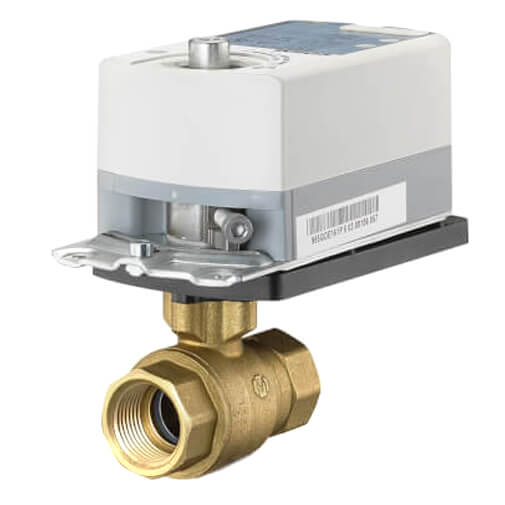

Siemens 171A-10301S Ball Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens 171A-10301S is a ball valve assembly designed for efficient control of water and water-glycol solutions. This assembly includes a 2-way valve with a size of half an inch and a flow capacity of 0.63 Cv. The stainless steel ball and stem ensure durability and longevity. The actuator is equipped for direct coupling and operates at 24 VAC.

• NPT connection
• Operates from -22 F to 130 F
• Close-off pressure of 200 psi

Product Highlights

Ideal for managing heating and cooling systems, the Siemens ball valve assembly provides reliable operation in various HVAC applications.

Product Information

Standard Information

• Brand: Siemens
• Part #: 171A-10301S

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Water, 50% Water-Glycol Solution
• Power Consumption: 3.3 VA (Modulating), 2.3 VA (Three-Position)
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 130 F (-30 C To 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
