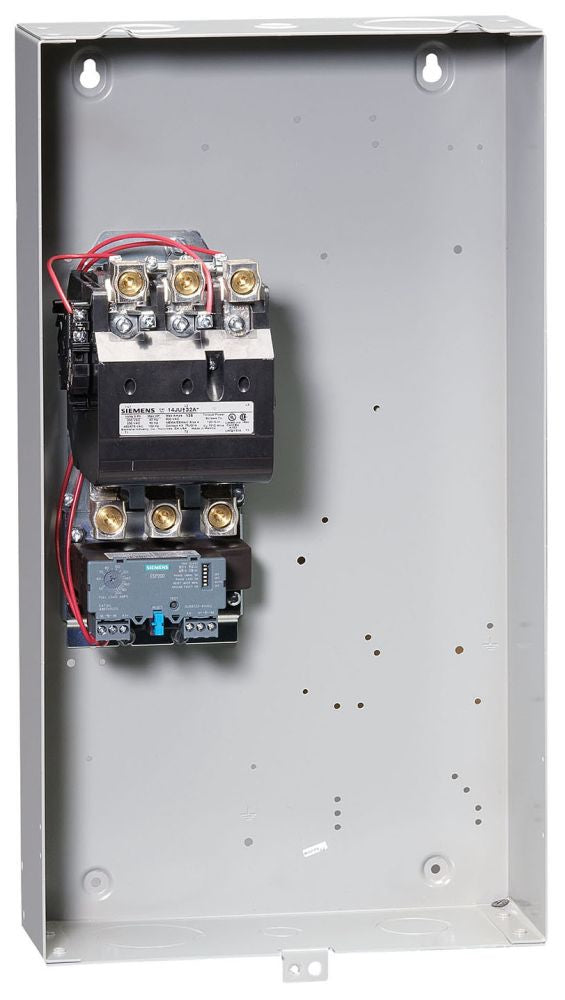

Siemens 14JUH32BA Heavy Duty Motor Starter 50-200A 120/240VAC Coil NEMA 1 Enclosure

Product Description

The Siemens 14JUH32BA is a heavy-duty motor starter designed for reliable performance in industrial settings. This starter is suitable for three-phase operation with a solid-state overload relay. It can handle a range from fifty to two hundred amperes and supports varied voltage configurations, including one hundred twenty to two hundred forty volts.

• Designed for across-the-line starting of motors
• Features solid-state overload protection
• NEMA 1 enclosure offering protection from dust and particles

Product Highlights

This motor starter ensures efficient operation and protection for motors in demanding environments.

Product Information

Standard Information

• Manufacturer: Siemens
• Type: Across the Line, Full Voltage, Non-Reversing

Technical Specifications

• Amperage Rating: 50 to 200 A
• Coil Voltage: 120/240 VAC
• Enclosure Type: NEMA 1
• Number of Poles: 3
• Overload Relay: Solid-State
• Operating Temperature: -4 to 104 degrees F
• Motor Power Capacity: 40 HP at 200 V, 50 HP at 230 V, 100 HP at 460/575 V
• Dimensions: 25 inches H x 14 inches W x 9 inches D
