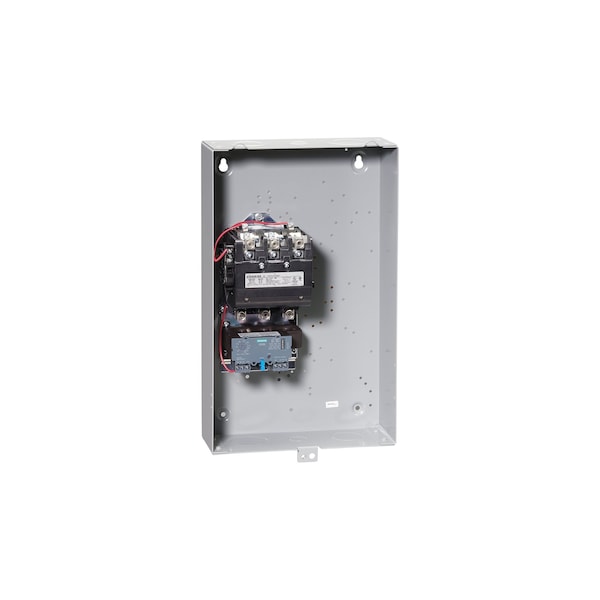

Siemens 14HUG32BC Starter, FVNR SZ3, 25-100Amps, N1, 240/480V

Product Description

The SIEMENS 14HUG32BC is a Class 14 full voltage non-reversing motor starter designed for reliable three-phase motor control applications. This starter features a solid-state overload relay with an adjustable amp range of 25-100A and is compatible with 220-240/440-480VAC 60Hz control voltage. It is suitable for industrial environments requiring dependable motor protection and control.

• Siemens Class 14 full voltage non-reversing motor starter
• Solid-state overload relay with an adjustable amp range of 25-100A
• Compatible with 220-240/440-480VAC 60Hz control voltage

Product Highlights

The 14HUG32BC motor starter is a three-pole, size 3 motor starter with a 600VAC rating and NEMA 1 enclosure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14HUG32BC
• Country of Origin: Mexico

Technical Specifications

• Coil: 220-240/440-480
• Enclosure: NEMA 1
• Max HP at 200 V: 25
• Max HP at 230 V: 30
• Max HP at 460 V: 50
• Nema Size: 3
• Overload Range: 25-100
• Part Number: 14HUG32BC
• Manufacturer: Siemens
• Brand: Siemens
• Category: Motor Control
• Item Subcategory: Motor Starter
• Family: Class 14
• Type: 14HU
• Voltage: 600
• Amperage: 100
• Phase: 3
• Poles: 3
• Coil Voltage Maximum: 480
• Coil Voltage Minimum: 440
• Nema Starter Size: 3
• Control Voltate Maximum: 480
• Motor FLA Range: 25-100 A
• Coil Volts: 220-240/440-480V
• Enclosure NEMA Rating: NEMA 1
