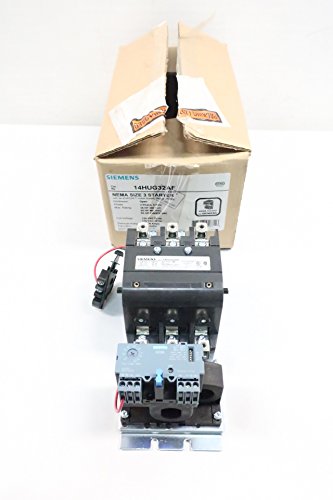

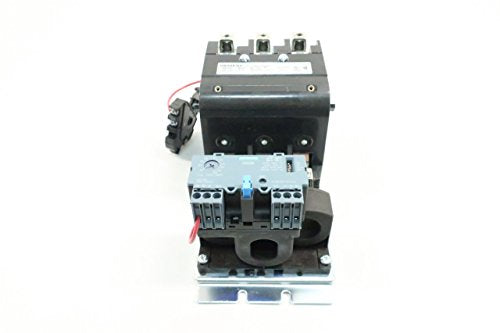

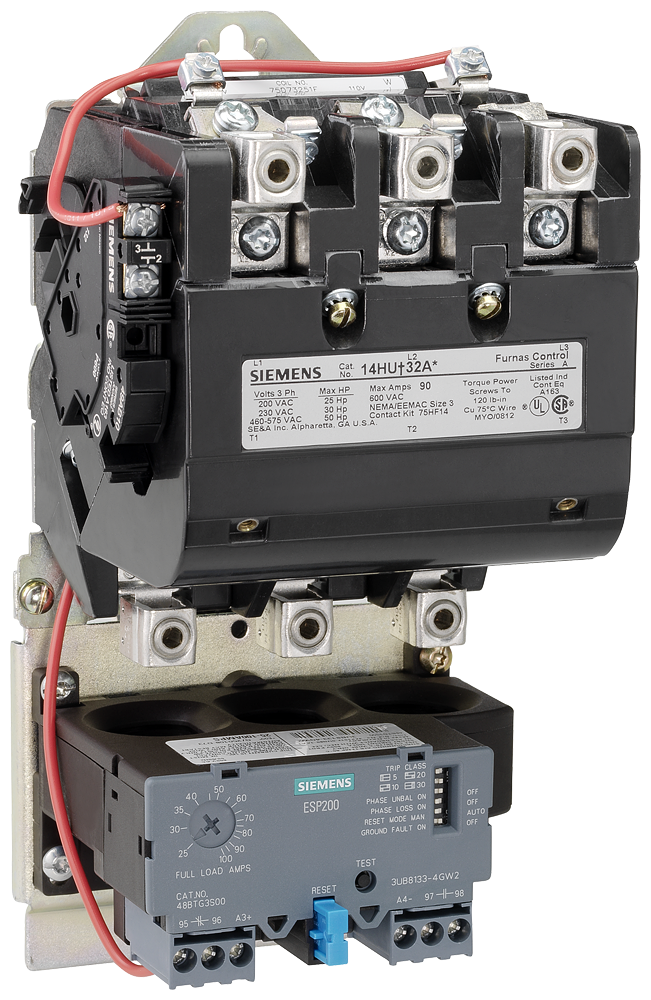

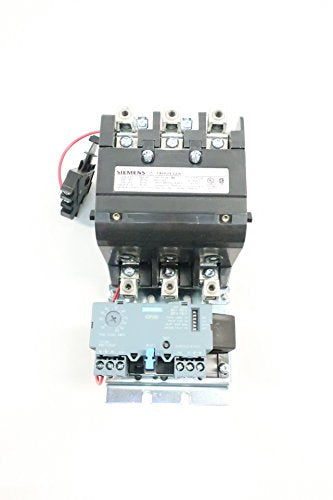

Siemens 14HUG32AF Starter, Full Voltage Non-Reversing, Size 3, 25-1 HP, 90 Amp, 120V Coil

Product Description

The Siemens 14HUG32AF motor starter is engineered for straightforward control of three-phase motors. Manufactured by Siemens, the non-reversing starter is designed for full voltage operations, featuring an open-type enclosure without additional housing. This starter is ideal for heavy-duty industrial applications requiring motor controls capable of handling up to 50 horsepower.

• Provides solid-state overload relay protection within a range of 25 to 100 amps.
• Equipped with a 120V coil applicable for both 50Hz and 60Hz, enhancing versatility.
• Rated for approximately 5 million operating cycles, ensuring durability and long term reliability.

Product Highlights

This motor starter emphasizes serious performance with its robust capability to manage sizable motors, supporting functionality across various industrial setups without the necessity of an enclosure.

Technical Specifications

• Size: NEMA 3
• Type: Full Voltage Non-Reversing, Class 14, Heavy Duty
• Width: 7.9 inches
• Height: 7.2 inches
• Length: 13.8 inches
• Weight: 7 pounds
• Voltage: 120 Volt
• Amperage: 90 Amp
• Standard: UL Listed File E14900, CSA Certified File LR6535
• Enclosure: Open Type
• Reset Type: Auto/Manual
• Motor Power: 25 hp
