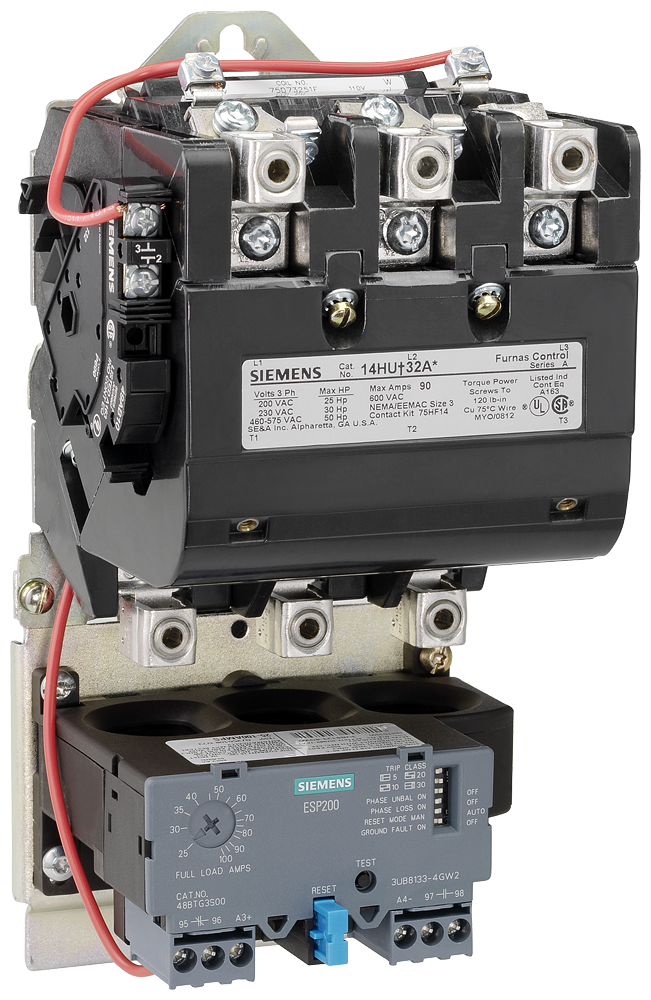

Siemens 14HUG32AD Starter, FVNR SZ3, 25-1

Product Description

The Siemens 14HUG32AD is a non-reversing motor starter designed for three-phase operations. This starter accommodates full voltage applications and features a solid-state overload relay with an amp range of twenty-five to one hundred amps. The starter operates at a coil voltage of 208VAC, making it suitable for various machinery and industrial settings.

• Non-reversing motor starter for three-phase systems
• Solid-state overload relay for reliable performance
• Compatible with a variety of motor types and power ratings

Product Highlights

This motor starter is designed for robust control in demanding environments. Its open enclosure type allows for versatile installation.

Product Information

Standard Information

• Brand: Siemens
• MPN: 14HUG32AD

Technical Specifications

• Amperage: 90 Amp
• Motor Power: 25 hp
• Power Supply: 600 V
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Operating Cycles: 5000000
• Weight: 7 lb
• Country of Origin: Mexico
