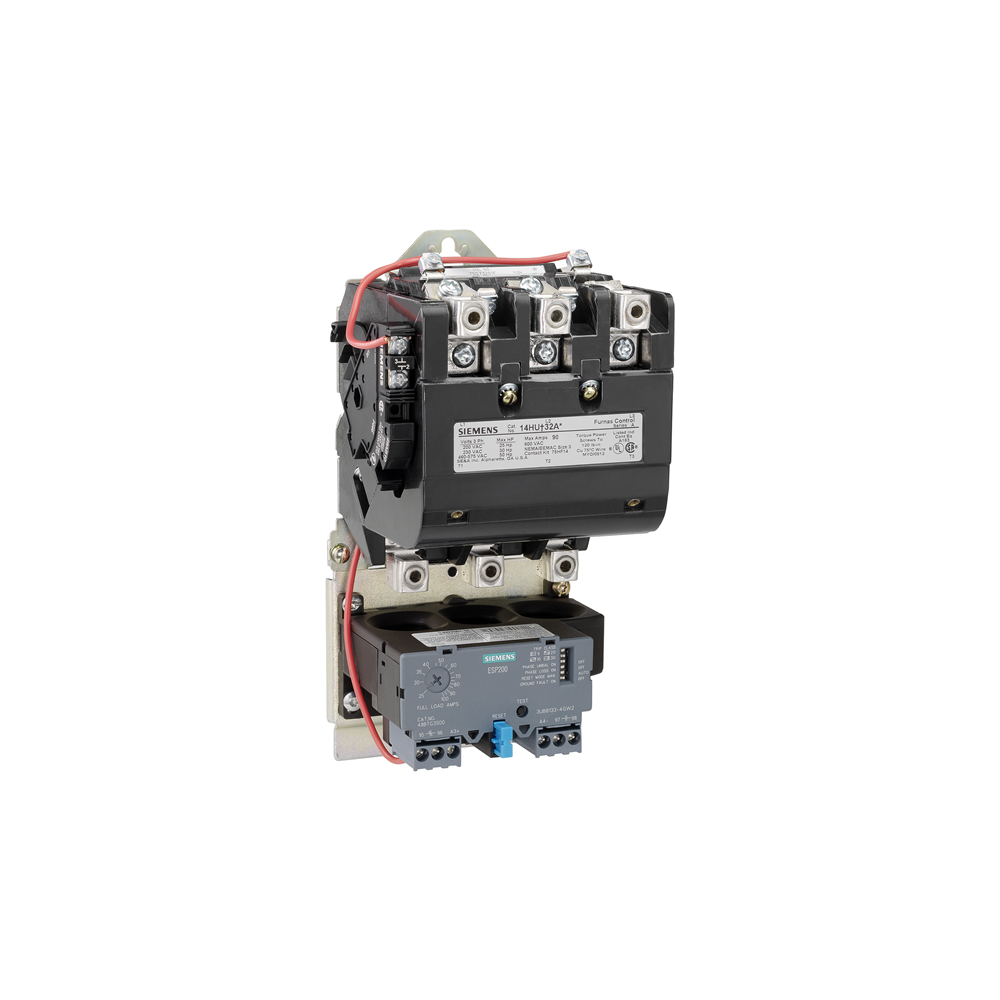

Siemens 14GUG32AF Starter, Fvnr Sz2 1/2, 120 Volt

Product Description

The Siemens 14GUG32AF is a non-reversing motor starter, size 2 1/2, with three-phase full voltage and a solid-state overload relay. The OLR amp range is 25-100A with a 110V 50Hz / 120V 60Hz coil. This non-combination type starter has an open enclosure and is suitable for heavy-duty applications.

• Non-reversing motor starter
• Three phase full voltage
• Solid-state overload relay

Product Highlights

This Siemens starter features solid-state overload protection and is designed for efficient and safe motor operation in heavy-duty applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14GUG32AF
• Country of Origin: Mexico

Technical Specifications

• Size: 2-1/2 in
• Type: Full Voltage Non-Reversing,Class 14,Heavy Duty
• Brand: Siemens
• Width: 8.000 in
• Height: 5-1/2 Inch
• Length: 10 Inch
• Voltage: 120 Volt
• Amperage: 60 Amp
• Standard: UL Listed File E14900,CSA Certified File LR6535
• Enclosure: Open Type
• Sub Brand: Siemens
• Reset Type: Automatic/Manual/Remote
• Motor Power: 15 hp
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Coil: 120
• Nema Size: 2 1/2
• Overload Range: 25-100
• Max HP at 200 V: 15
• Max HP at 230 V: 20
• Max HP at 460 V: 30
• Replacement Coil: 75D73070F
• Contact Kit (3 required): 75GP14
• Control Voltage: 120 V
• Horsepower, Max, 3 Phase, at 200 V: 15
• Horsepower, Max, 3 Phase, at 230 V: 20
• Horsepower, Max, 3 Phase, at 460 V: 30
• Horsepower, Max, 3 Phase, at 575 V: 30
• Horsepower Rating: 30 hp
• Manufacturer Part Number: 14GUG32AF
• Motor FLA Range: 25-100 A
• Mounting Type: Panel Mount
• Phase: 3 Phase
• Primary Type: DOL Starter
• Series: Class 14 Series
• Starter Type: NEMA Starter
• UNSPSC: 39121521
• Coil Voltage: 110 to 120
• Enclosure Type: NEMA 2/Open
• Overload Relay: Solid-State
• Voltage Rating: 600
• Connection Type: Thread
• Frequency Rating: 50/60
• Operating Temperature: -4 to 104
• Alternate Catalog Number: US2:14GUG32AF
• Auxiliary Contact Rating: 1NO
• Catalog Number: 14GUG32AF
• Manufacturer: Siemens
• Number Of Poles: 3
• Standards: ARRA, Buy American Act and RoHS Compliant, UL File No. E14900, CSA No. LR 6535
