Siemens 14FUF32WA Starter, Fvnr Sz2, 13-52Amps, N4ss, 120/240V

Product Description

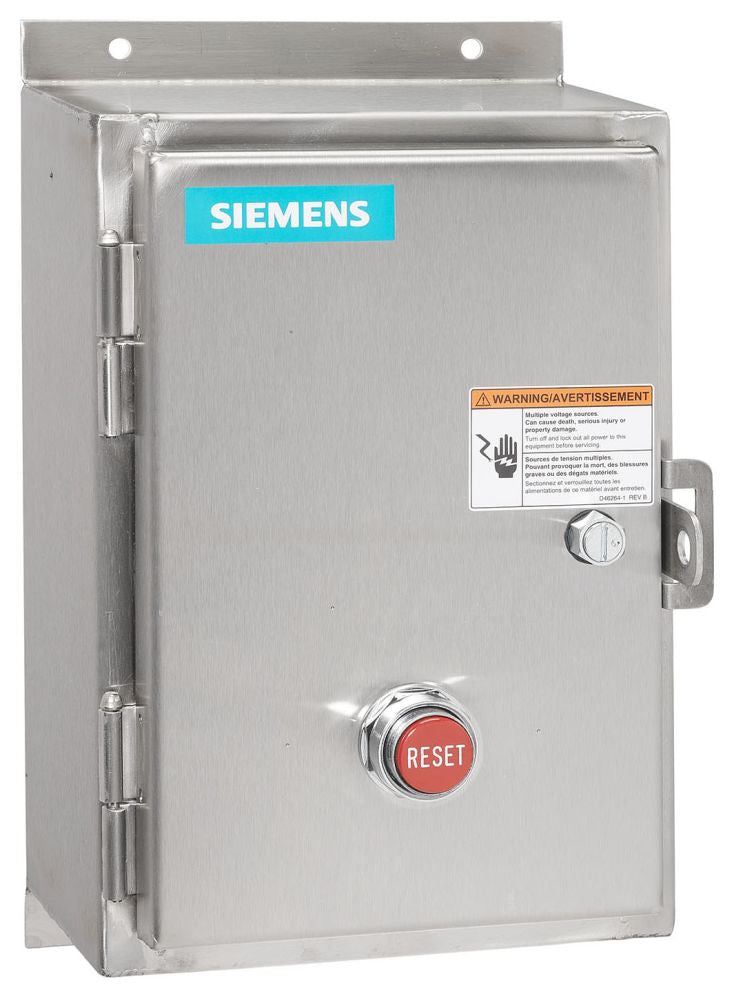

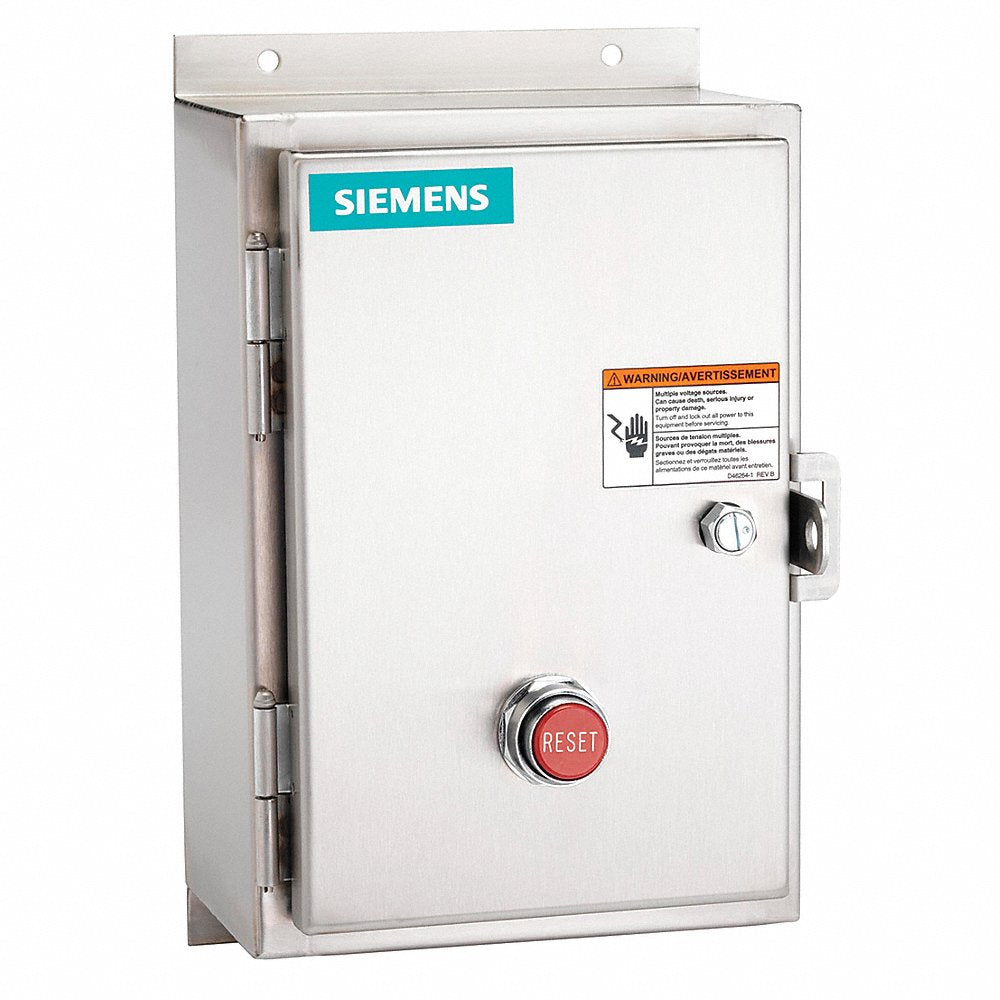

The SIEMENS 14FUF32WA is a NEMA motor starter with electronic overloads and a NEMA 4X enclosure, protecting internal components from impacts, debris, and dust. This non-reversing starter connects and disconnects power to motors in a single direction. The electronic overload relays have adjustable current settings and break electrical connections once the current reaches a pre-determined range.

• Non-Reversing capability
• Electronic Overload Protection with adjustable current settings from 13 A to 52 A
• Suitable for indoor and outdoor use with NEMA 4X enclosure

Product Highlights

NEMA motor starter with electronic overload protection and adjustable current settings, suitable for indoor and outdoor applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14FUF32WA
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: 14FUF32WA
• Buy Line: SIE
• Country Of Origin: USA
• Series: FVNR
• Starter Style: NEMA
• Overload Protection Type: Electronic
• Thermal Units Required: None (Not Applicable to Electronic Overloads)
• Reversing Capability: Non-Reversing
• Number of Poles: 3
• Phase: Three
• NEMA Size: 2
• Max Current (AC): 45 A
• Minimum Overload Relay Current Setting: 13 A
• Maximum Overload Relay Current Setting: 52 A
• Trip Class: 5/10/20/30
• Coil Voltage: 120-240V AC
• Frequency: 60 Hz
• Nominal Coil Voltage @ 60Hz: 120/240V AC (Dual Rated)
• Maximum Voltage Rating: 600V AC
• Horsepower @ Three Phase - 208V AC: 10 hp
• Horsepower @ Three Phase - 240V AC: 15 hp
• Horsepower @ Three Phase - 480V AC: 25 hp
• Horsepower @ Three Phase - 600V AC: 25 hp
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO
• Wire Termination Type: Screw
• NEMA Enclosure Rating: 4X
• Overall Height: 16 in
• Overall Width: 8 in
• Overall Depth: 6 in
• Mounting Style: Surface
• Mounting Postion: Vertical
• Minimum Operating Temperature: -4 °F
• Maximum Operating Temperature: 104 °F
• Mechanical Operating Durability: 10,000,000
• Response Time: 10 to 24 msec (OFF-Delay Time); 19 to 29 msec (ON-Delay Time)
• Standards: CSA 22.2 No.14; NEMA ICS 2; UL 508
• UNSPSC: 39121521
• Action: Nonreversing
• Auxiliary Contact Module Capacity: 7
• No. Of Auxillary Contacts: 1
• Overload Relay Amps Setting: 13-52A
• Starter Type: NEMA Style
• Voltage - Load: 600V
• Current - Output: 45A
• Wattage - Load: 18640 W
• Voltage - Supply: 110 ~ 240VAC
• Motor Type: AC Motor
• Control / Drive Type: Motor Starter
• Manufacturer: Siemens
