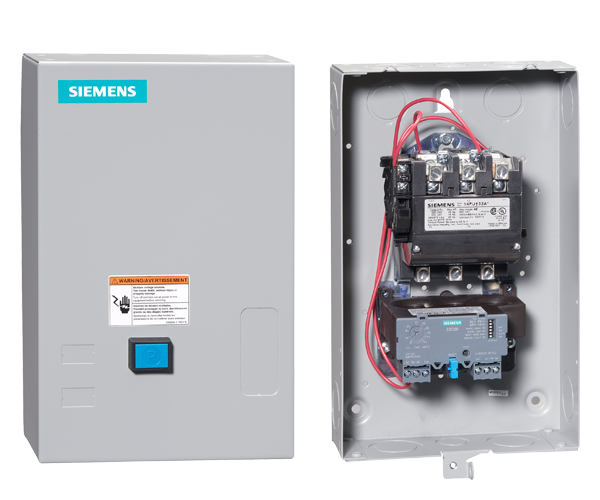

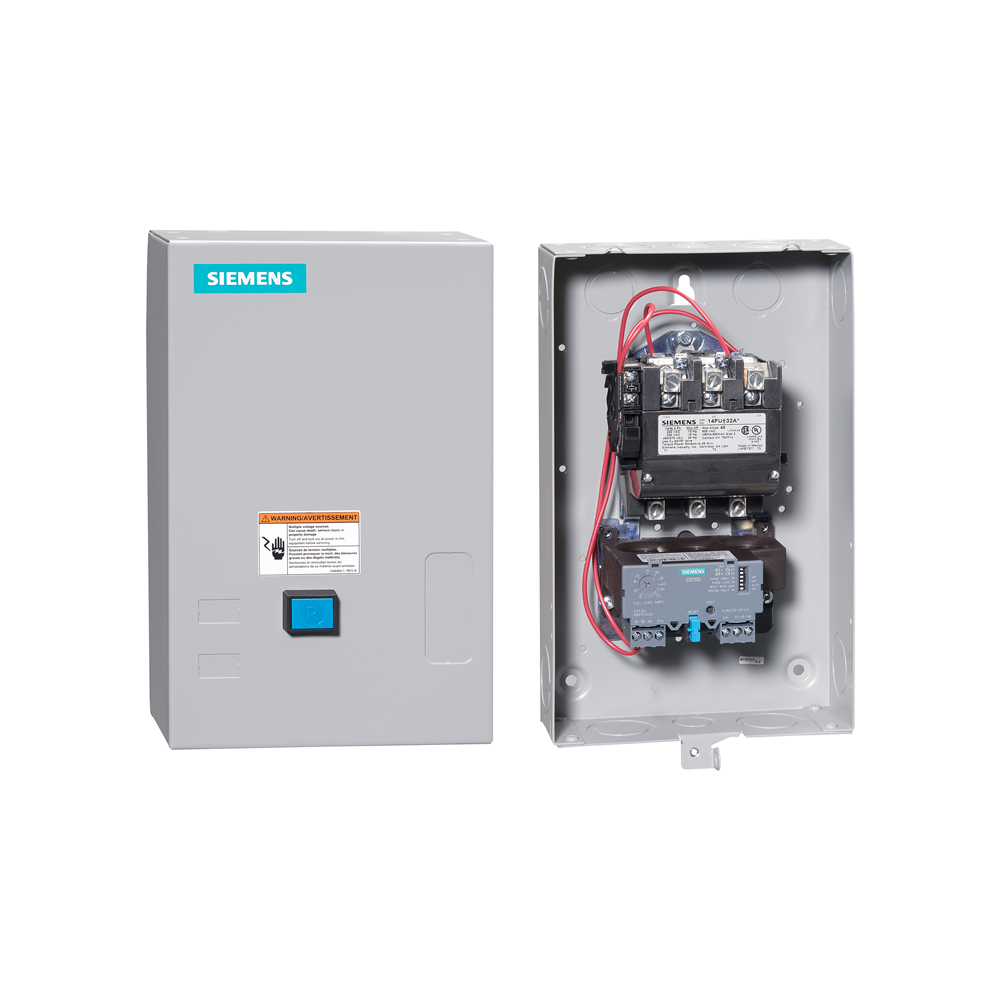

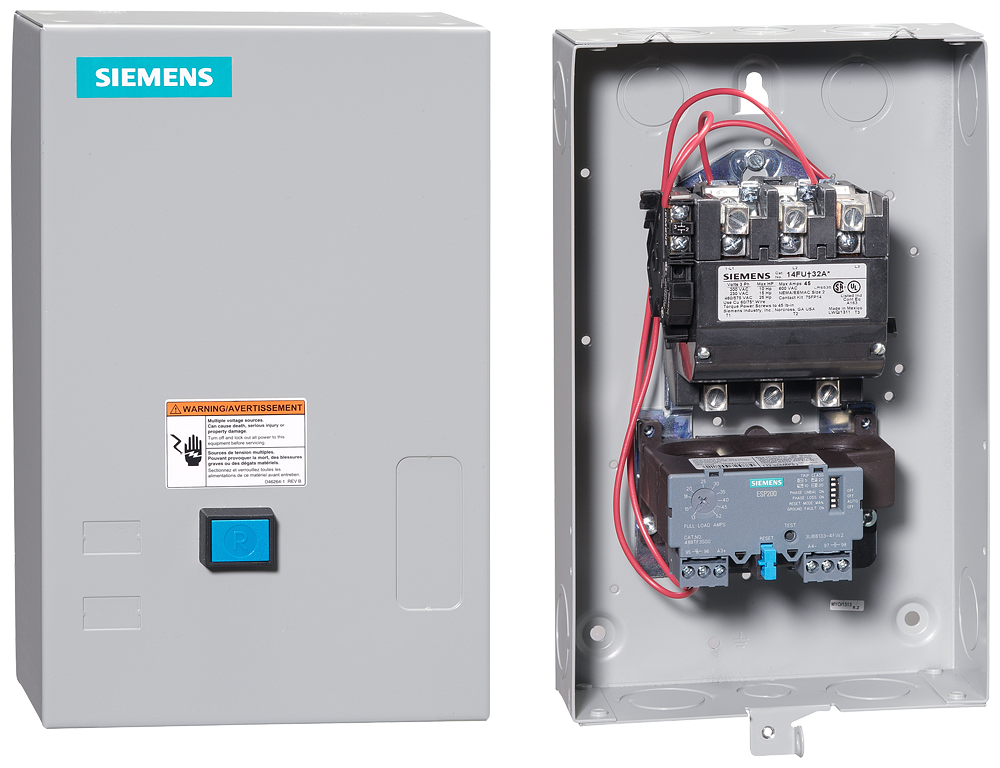

Siemens 14FUF32BC Heavy Duty Motor Starter, Solid State Overload, 13–52A Amp Range, NEMA 1 General Purpose Enclosure

Product Description

The SIEMENS 14FUF32BC heavy-duty motor starter is designed for across-the-line starting of single-phase and polyphase motors. Available in NEMA size 2, it features a solid-state overload relay and an auto/manual reset. It comes in an open type with a NEMA 1 general-purpose enclosure. It is suitable for use with machine tools, air conditioning equipment, and material handling equipment.

• Designed for across the line starting of single phase and polyphase motors
• Features dual voltage, dual frequency coils
• Equipped with a NEMA 1 enclosure for indoor, general-purpose use

Product Highlights

This heavy-duty motor starter offers reliable performance with its robust industrial design and multiple voltage options, making it ideal for various industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14FUF32BC
• Country of Origin: Mexico

Technical Specifications

• Brand: SIEMENS
• MPN: 14FUF32BC
• Manufacturer: Siemens
• Model / MPN: 14FUF32BC
• Product Type: MOTOR_STARTER
• Enclosure: NEMA 1
• Nema Size: 2
• Overload Range: 13-52
• Max HP at 200 V: 10
• Max HP at 230 V: 15
• Max HP at 460 V: 25
• Reset Type: Automatic/Manual/Remote
• Application: For across the line starting of 1-phase and polyphase motors, applications requiring dependability and durability, use with machine tools, air conditioning equipment, material handling equipment, compressors, hoists and various production and industrial equipment as well as in demanding automotive, indoor and general purpose applications
• Coil Voltage: 220 to 240 VAC, 440 to 480 VAC, 190 to 220 VAC, 380 to 440 VAC
• Enclosure Type: NEMA 1
• Overload Relay: Solid-State
• Voltage Rating: 575/600
• Connection Type: Box Lug
• Frequency Rating: 50/60
• Operating Temperature: -4 to 104
• Type: Full Voltage Non-Reversing, Heavy Duty, Class 14
• Motor Power: 10 hp, 15 hp, 25 hp
• Amperage Rating: 13 to 52
• Amperage: 45 Amp
• Number of Phases: 3 Phase
• Number of Poles: 3 Pole
• Operating Cycles: 10000000
• Power Supply: 600 V
• Size: NEMA 2
• Standard: CSA Certified File LR6535,UL Listed File E14900
• Voltage: 480 Volt
