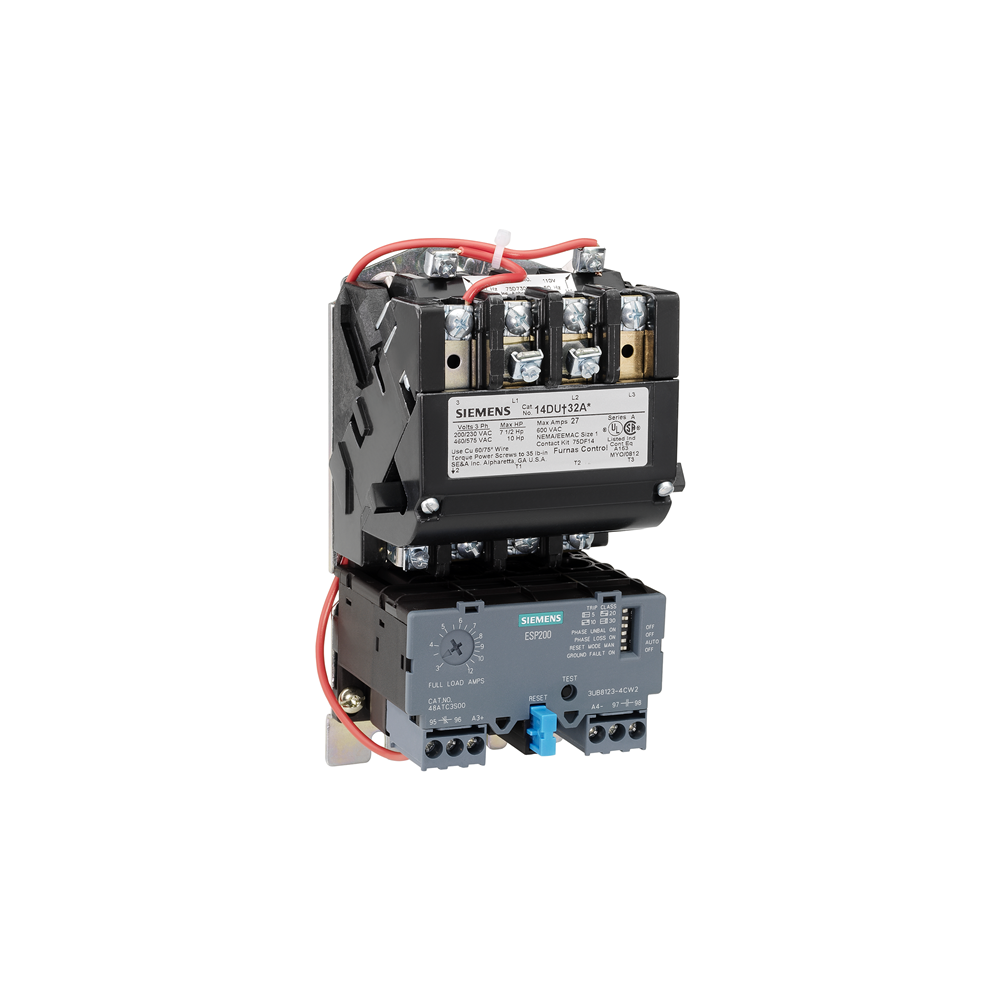

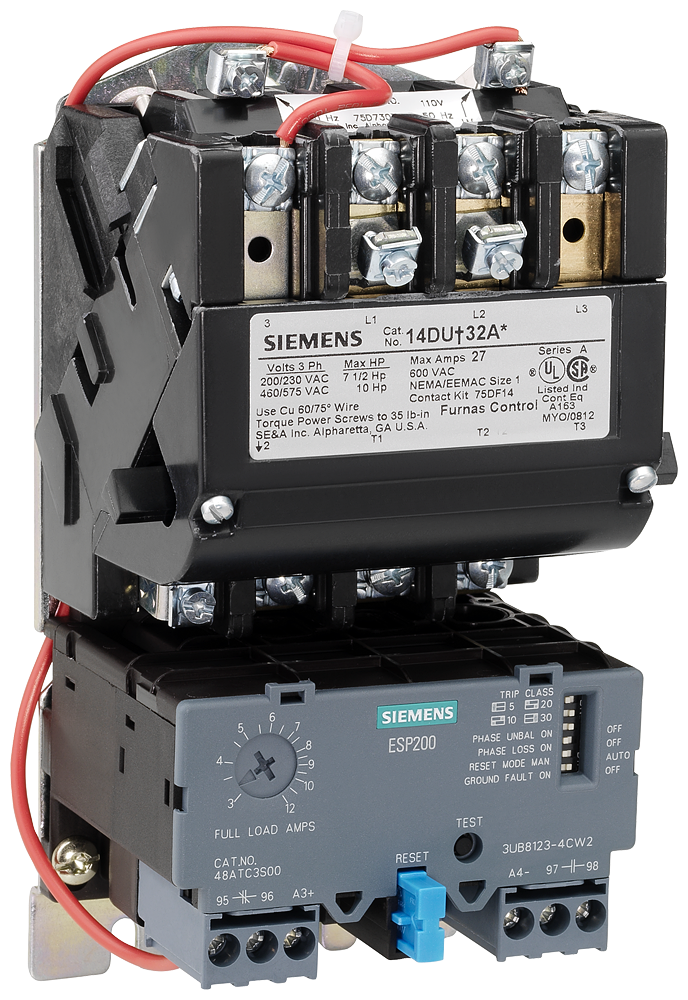

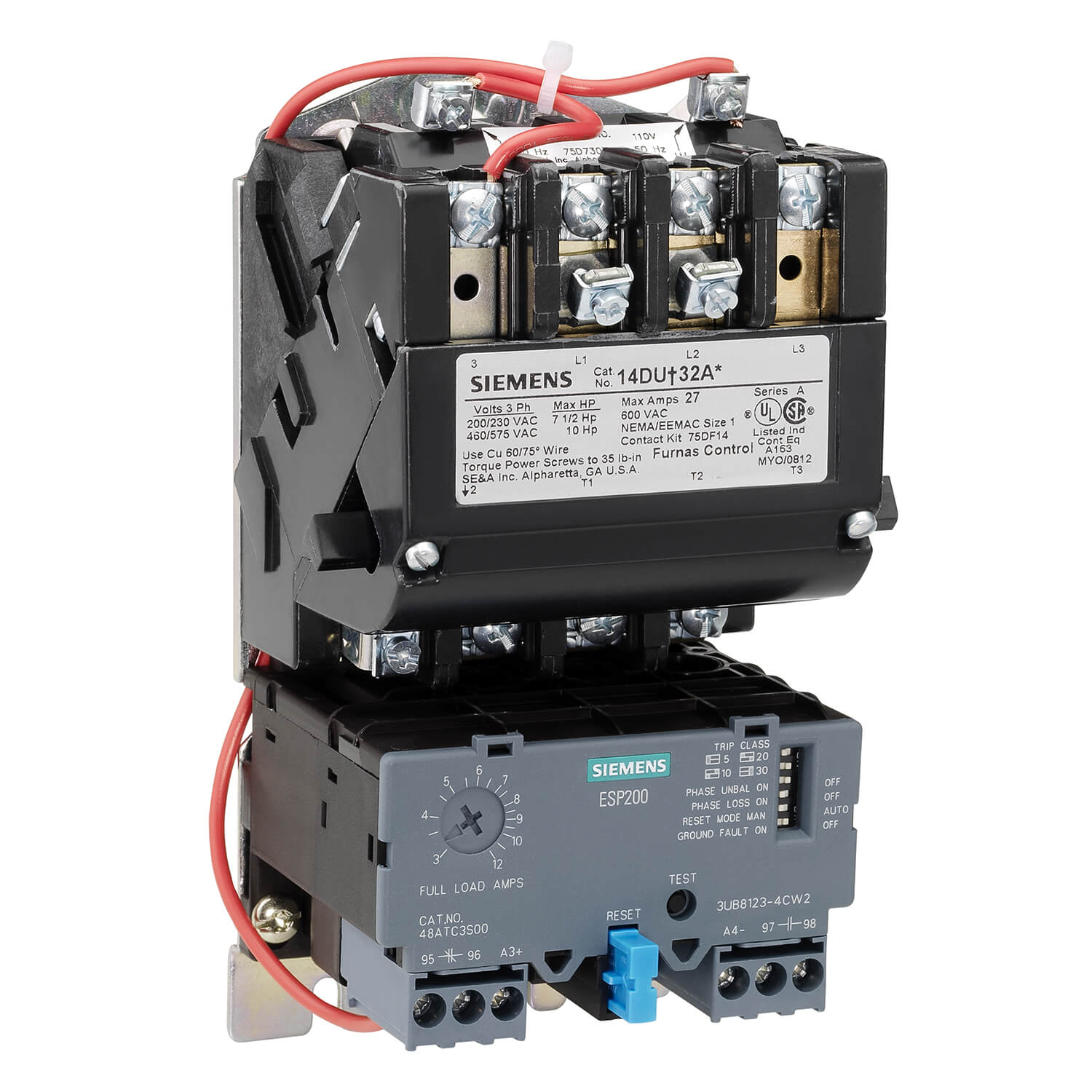

Siemens 14FUF32AJ Starter Fvnr 45A (Size 2) Replacement 75D73070J

Product Description

Siemens 14FUF32AJ is a non-reversing (FVNR) full-voltage motor starter sized at 2 for three-phase applications. It includes a solid-state overload relay adjustable 13�52 A and a 24 VAC 50�60 Hz control coil. The open, combination-type chassis module is rated for 45 A output and a 600 V load, suitable for motor loads up to 10 hp in industrial motor control and machinery.

• Three-phase full-voltage non-reversing starter with solid-state overload relay (13�52 A)
• 24 VAC control coil, 50�60 Hz; open enclosure (no enclosure), combination-type chassis module
• Rated 45 A output, 600 V load rating, size 2 for motors up to 10 hp

Product Highlights

Size 2 FVNR motor starter, 3-pole, 24 VAC coil, overload 13�52 A, 45 A output, open enclosure

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14FUF32AJ
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Siemens
• MPN: 14FUF32AJ
• Product Type: Motor starter
• Starter Type: Full-voltage non-reversing (FVNR)
• Size: 2
• Poles: 3
• Phase: 3
• Coil Voltage: 24 VAC
• Coil Frequency: 50-60 Hz
• Overload Range: 13-52 A
• Output Current: 45 A
• Load Voltage Rating: 600 V
• Motor Power Rating: 10 hp (maximum, application dependent)
• Enclosure: Open (no enclosure)
• Mounting Type: Chassis mount
• Operating Temperature: -20�C to 40�C
• Number of Motors: 1
• Replacement Coil: 75D73070J
• Contact Kit: 75FP14
• Country of Origin: Mexico
• RoHS Status: RoHS non-compliant
