Siemens 14EUE320J Starter, FVNR SZ1 3/4, 10-40Amps, N12/3R, 24

Product Description

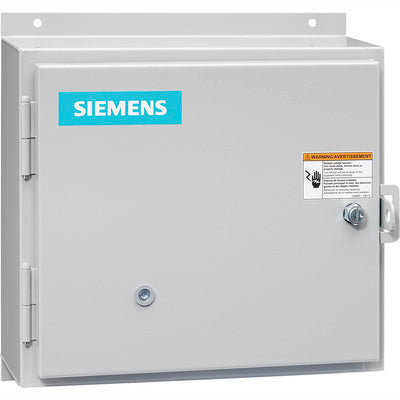

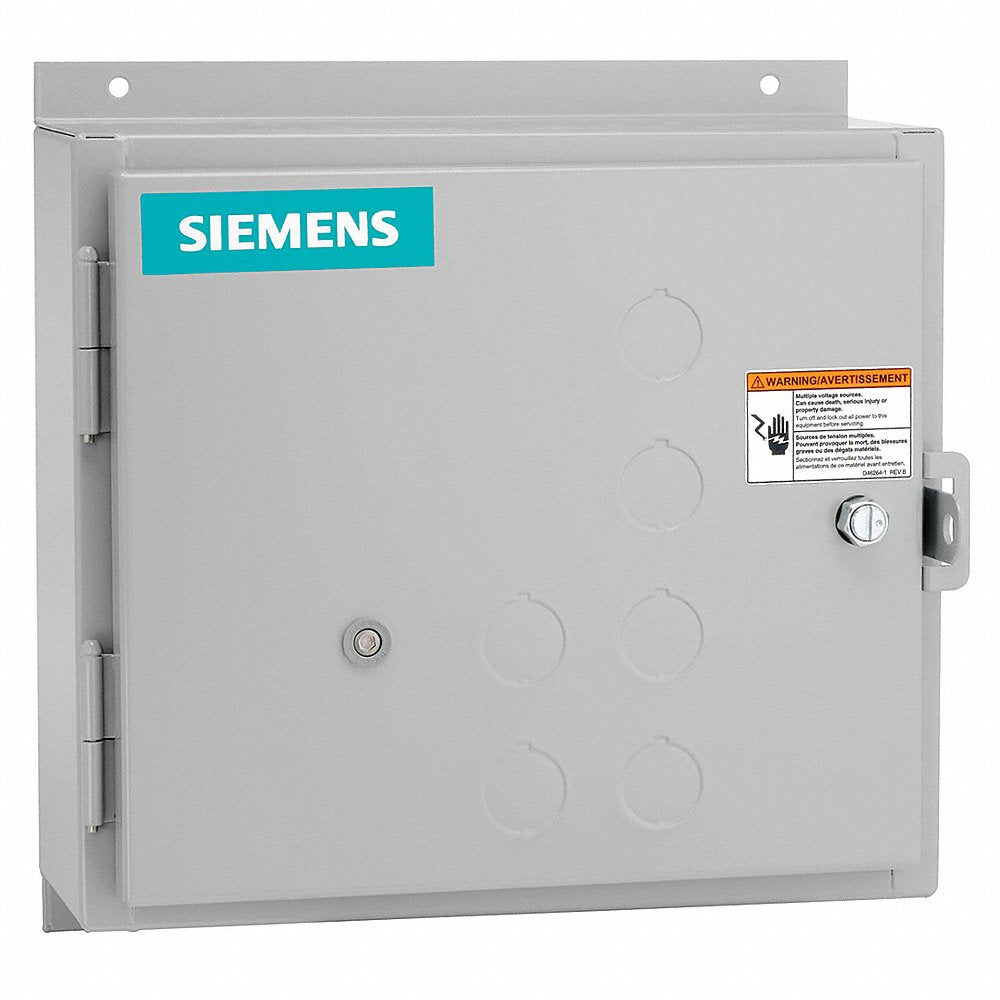

The SIEMENS 14EUE320J is a non-reversing NEMA magnetic motor starter, size 1 3/4, with an overload range of 10-40A. It features a 24VAC 50-60Hz coil and is designed as a non-combination type with a NEMA 12 enclosure for dust/drip proof indoor use. The starter includes solid-state overload relay and standard width enclosure.

• NEMA Size 1 3/4
• Overload Range: 10-40 Amps
• Enclosure: NEMA 12 3/3R

Product Highlights

This Siemens starter is ideal for motor control applications requiring reliable overload protection and a durable enclosure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14EUE320J
• Country of Origin: Mexico

Technical Specifications

• Coil: 24
• Enclosure: NEMA 12 3/3R
• Nema Size: 1 3/4
• Overload Range: 10-40
• Max HP at 200 V: 10
• Max HP at 230 V: 10
• Max HP at 460 V: 15
• Brand: SIEMENS
• Manufacturer Part Number: 14EUE320J
• Motor FLA Range: 10-40 A
• Condition: New
• Action: Nonreversing
• Auxiliary Contact Form: 1NO
• Includes Auxiliary Contacts: Yes
• Max. Operating Temp.: 104°F
• Mechanical Operating Durability: 10000000
• Min. Operating Temp.: -4°F
• Min. Overload Relay Amps Setting: 10A
• Mounting Postion: Vertical
• Mounting Style: Surface
• Nema Enclosure Rating: NEMA 12
• No. Of Auxillary Contacts: 1
• Overload Protection Type: Electronic
• Overload Relay Amps Setting: 10-40A
• Starter Style: NEMA
• Starter Type: NEMA Style
• Type: Non-Combination Full Voltage Non-Reversing Starter
• Construction Standard: NEMA 600V AC
• Size: NEMA Half Size 1-3/4
• UL Cont. Amps: 40A
• Phase: 3
• Hp 3-Phase 575V: 15 hp
• Overload Relay: Solid State
• Motor FLA: 10.00-40.00A
• Auxiliary Contacts: (1) NO
• Primary brand: Siemens
• Order code / Manufacturer SKU: 14EUE320J
• Manufacturer description: Starter FVNR SZ1 3/4 10-40A - N12/3R - 24
• Location of origin: United States
