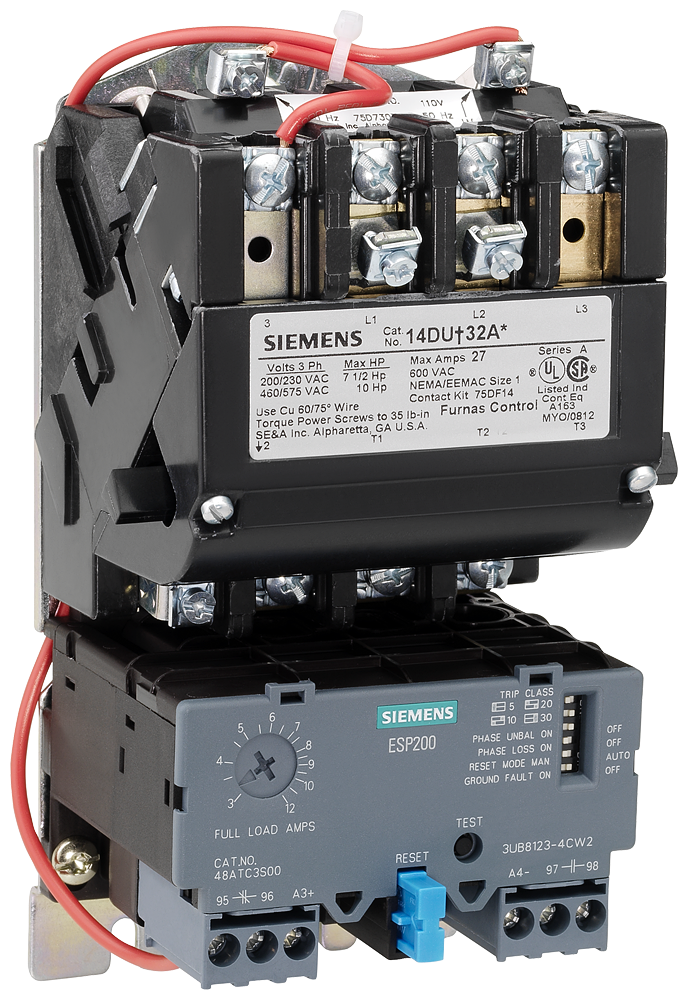

Siemens 14DUD32AA Non-Reversing Motor Starter 120/220 to 240 VAC 5.5 to 22 Amp 10 Hp 3-Phase 3-Pole

Product Description

The Siemens 14DUD32AA is a non-reversing motor starter designed for industrial applications. This motor starter operates at 120/220 to 240 VAC and accommodates a current range from five point five to twenty-two amps. It is suitable for three-phase motors requiring a power supply of up to ten horsepower.

• Three-phase full voltage operation
• Solid-state overload relay with an overload relay amp range
• Open enclosure type, no combination type

Product Highlights

This product is ideal for controlling single-phase and polyphase motors. It features a manual, automatic, and remote reset type, making it versatile for various setups. The compact size of this model allows for efficient installation in tight spaces.

Product Information

Standard Information

• Catalog Number: 14DUD32AA
• Brand: Siemens

Technical Specifications

• Voltage Rating: 600 Volt
• Wattage: 8.6 Watt
• Amperage: 27 Amp
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Mounting Type: Surface
• Country of Origin: Mexico
• Operating Temperature: -40 To 40 degrees C
