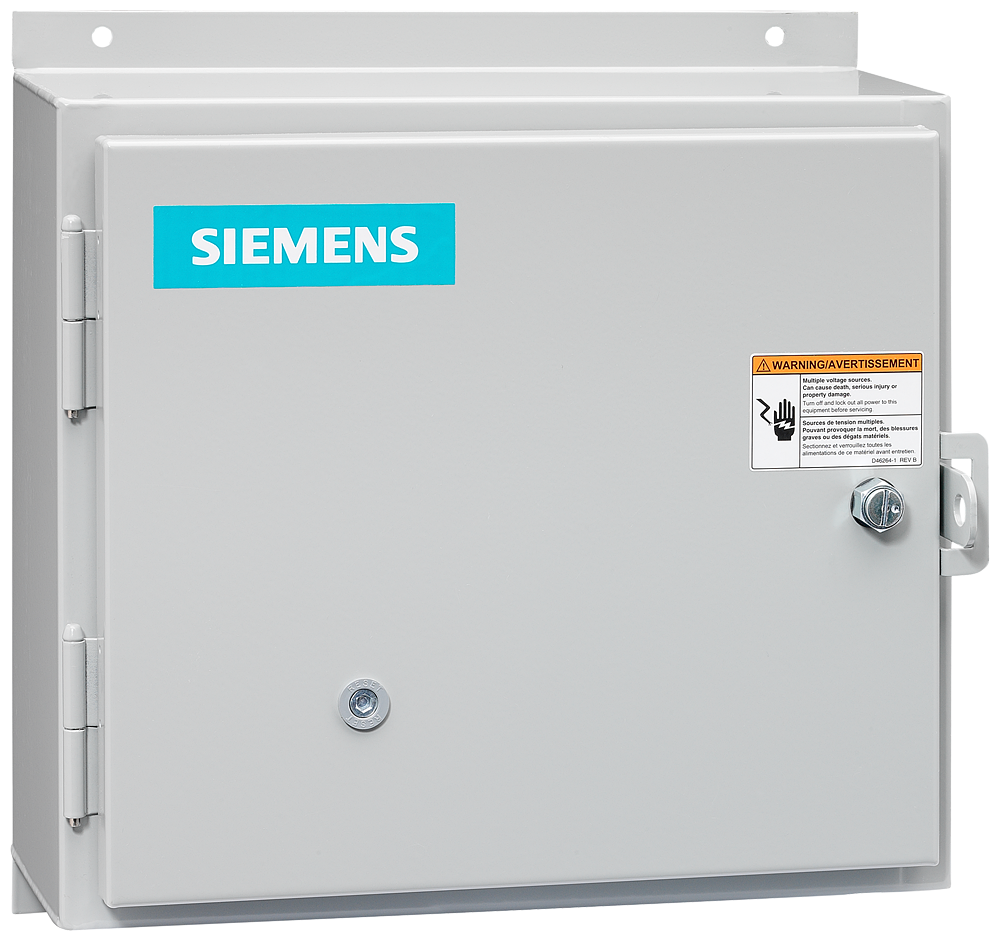

Siemens 14DUD320J Starter, Fvnr Sz1, 5.5-22A

Product Description

The Siemens 14DUD320J is a non-reversing motor starter, Size 1, with an H2 solid-state overload relay and an OLR amp range of 5.5-22A. It features a 24VAC 50-60Hz coil, and a non-combination type enclosure type 12, making it dust/drip proof for indoors with a standard width enclosure. The motor starter is suitable for AC motors.

• Solid-state overload relay with 5.5-22A range
• 24VAC 50-60Hz coil
• NEMA Size 1, Enclosure Type 12

Product Highlights

The Siemens 14DUD320J motor starter is designed for indoor use and provides reliable motor control with its solid-state overload relay and durable enclosure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14DUD320J
• Country of Origin: USA

Technical Specifications

• Catalog Number: 14DUD320J
• Brand: Siemens
• Manufacturer: Siemens
• Motor FLA Range: 5.5-22 A
• UPC Code: 783087945067
• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Series: -
• Part Status: Active
• Type: Module
• Motor Type: AC Motor
• Control / Drive Type: Motor Starter
• Number of Motors: 1
• Voltage - Load: 600V
• Current - Output: 27A
• Wattage - Load: 7460 W
• Voltage - Supply: 24VAC
• Mounting Type: Chassis Mount
• Operating Temperature: -20°C ~ 40°C
• Construction Standard: NEMA 600V AC
• Size: NEMA Size 1
• UL Cont. Amps: 27A
• Phase: 3
• Coil Voltage: 24V at 60/50Hz
• Hp 3-Phase 200V: 3 hp
• Hp 3-Phase 230V: 3 hp
• Hp 3-Phase 460V: 10 hp
• Hp 3-Phase 575V: 10 hp
• Enclosure Type: NEMA 3,3R,4,12
• Overload Relay: Solid State
• Motor FLA: 5.50-22.00A
• Auxiliary Contacts: (1) NO
• Primary brand: Siemens
• Order code / Manufacturer SKU: 14DUD320J
• Manufacturer product status: Commercialized
• Manufacturer description: Starter FVNR SZ1 5.5-22A - N12/3R - 24V
