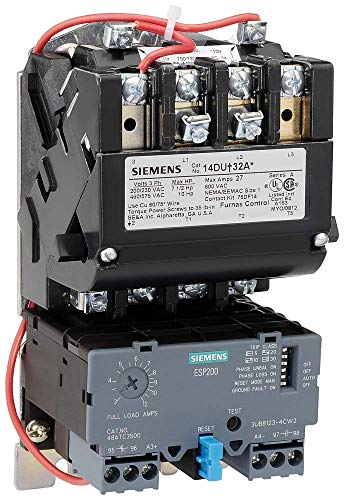

Siemens 14DUC32BA Motor Starter, Size1, 27A, OR 3-12A, NEMA1

Product Description

The SIEMENS 14DUC32BA heavy-duty motor starter is designed for across-the-line starting of single-phase and polyphase motors. It is available in NEMA Size 1 and features a NO holding interlock. This starter is ideal for applications requiring dependability and durability, such as machine tools, air conditioning equipment, and material handling equipment.

• Designed for across the line starting of single phase and polyphase motors
• Available in NEMA Sizes 00 through 8
• All starters are supplied with a NO holding interlock

Product Highlights

NEMA starters are ideal for applications requiring dependability and durability. Starters are available as an open type or in NEMA 1, 12/3/3R, 4 (painted), 4/4X (stainless), 4X (fiberglass), and 7 & 9 enclosures.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14DUC32BA
• Country of Origin: Mexico

Technical Specifications

• Brand: SIEMENS
• Manufacturer: Siemens
• Product Type: MOTOR_STARTER
• Model / MPN: 14DUC32BA

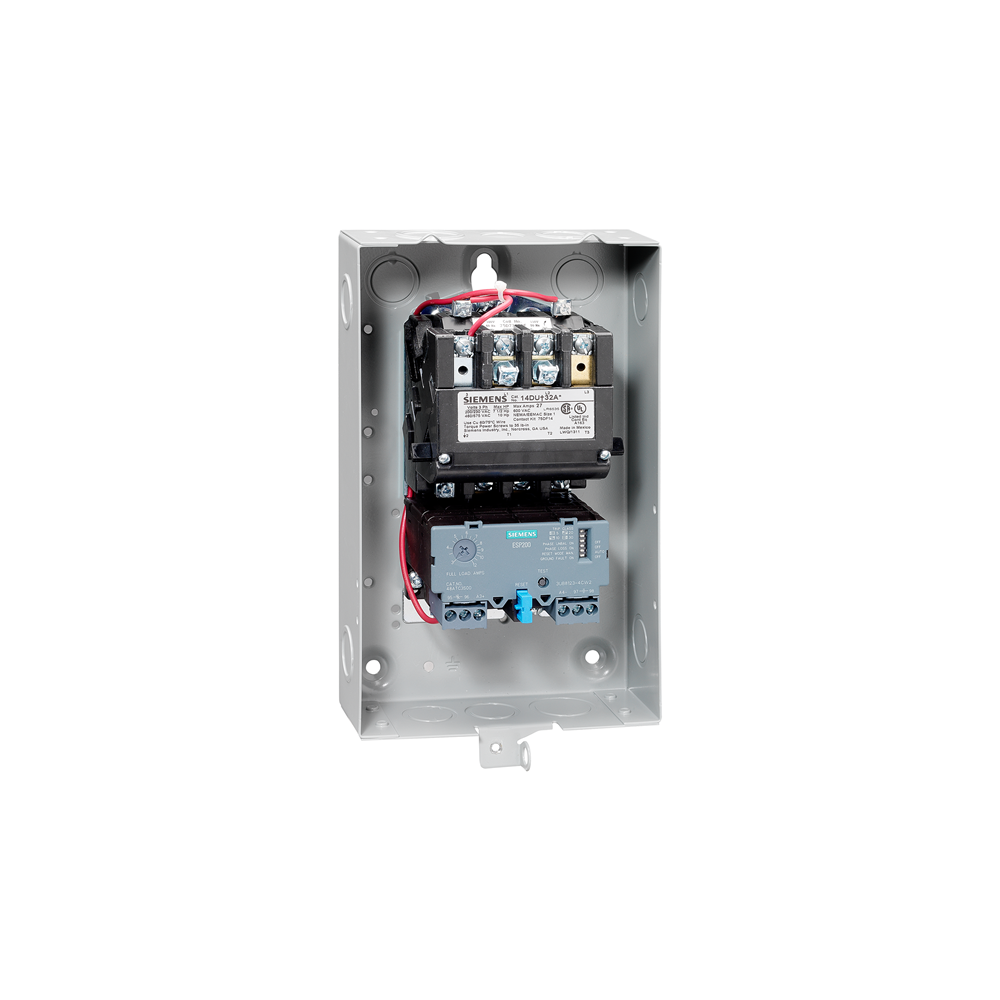

• Enclosure: NEMA 1
• Nema Size: 1
• Overload Range: 3-12
• Max HP at 200 V: 2
• Max HP at 230 V: 2
• Max HP at 460 V: 5
• Control Voltage: 110 to 120 V
• Horsepower, Max, 3 Phase, at 575 V: 5
• Horsepower Rating: 5 hp
• Mounting Type: Panel Mount
• Number of Poles: 3
• Overall Depth: 11 in.
• Overall Length: 6.41 in
• Overall Width: 5 in.
• Phase: 3 Phase
• Primary Type: DOL Starter
• Series: Class 14 Series
• Starter Type: NEMA Starter
• Type: Heavy Duty
• Voltage Rating: 575 V
