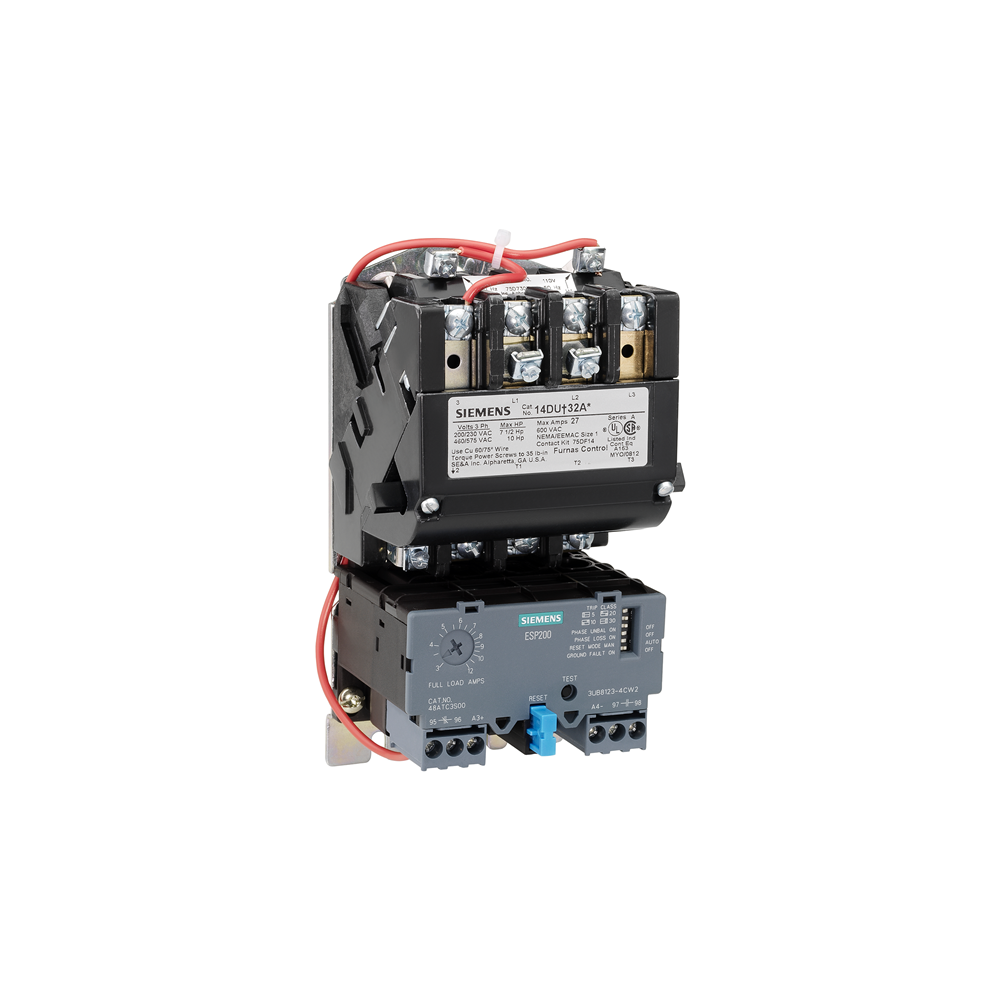

Siemens 14DUB32AC Open Starter 240/480V, Size 1

Product Description

The SIEMENS 14DUB32AC is an open starter designed for 240/480V applications, size 1. It features an open type enclosure and an overload range of 0.75-3.4. This heavy-duty, non-combination, non-reversing NEMA motor starter is suitable for across-the-line, full voltage applications. The unit has a solid-state overload relay and screw connections.

• Features a rugged industrial design.
• Equipped with dual voltage and dual frequency coils.
• Designed with straight-thru wiring and gravity dropout.

Product Highlights

This open starter is ideal for motor control applications requiring a reliable and robust solution. It offers easy coil access and an overload test feature.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14DUB32AC
• Country of Origin: Mexico

Technical Specifications

• Coil: 220-240/440-480
• Enclosure: Open Type
• Nema Size: 1
• Overload Range: 0.75-3.4
• Max HP at 200 V: 1/2
• Max HP at 230 V: 3/4
• Max HP at 460 V: 1 1/2
• Replacement Coil: 75D73070C
• Contact Kit (3 required): 75DF14
• Country of Origin: Mexico
• Operating Temperature: -4 to 104 deg F
• Number of Poles: 3
• Auxiliary Contact Rating: 10 A at 600 VAC, 5 A at 600 VDC
• Frequency Rating: 50/60 Hz
• Voltage Rating: 575/600 V AC
• Connection Type: Screw
• Reset Type: Automatic/Manual/Remote
• Operating Cycles: 10000000 Cycles
• Overload Relay: Solid-State
• BABA Compliant: No
• Amperage Rating: 0.75 to 3.4 A
• Coil Voltage: 220 to 240 V AC, 440 to 480 V AC, 190 to 220 V AC, 380 to 440 V AC
• Type: SZ 1 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing
