Siemens 14dse32af Class 14 Motor Starter 10 Hp 575V Nema 1

Product Description

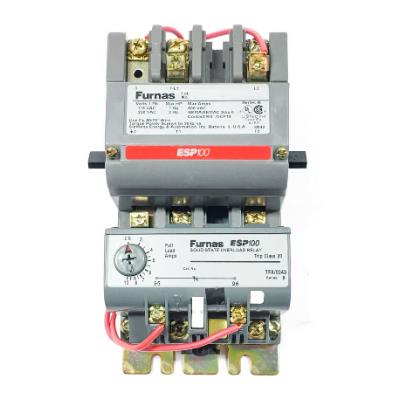

The SIEMENS 14dse32af is a Class 14 heavy duty motor starter designed for three-phase motor control applications in commercial and industrial electrical systems. Part of the Type 14DS family, this NEMA Size 1 starter handles up to 18 amps continuous with a 27-amp maximum, supporting 3 HP at 200-230 volts and 10 HP at 460-575 volts. It ships complete with a 120-volt 60 Hz coil (also rated 110 volts at 50 Hz) and a 9-18 amp overload relay. Licensed electricians and industrial maintenance technicians are the primary installers for this open-type device in motor control systems.

This starter is suited for three-phase motor control circuits operating at up to 575 volts in open-panel or enclosure-mounted Class 14 motor control assemblies. Typical applications include pump motors, fan motors, compressor drives, and conveyor systems in light industrial and commercial buildings. The 3-pole configuration handles standard three-phase loads where NEMA Size 1 capacity is appropriate. Note that this part number has been discontinued by the manufacturer; verify availability before specifying for new installations.

Key Features

• NEMA Size 1 rating supports motors up to 10 HP at 460-575 volts, 3 HP at 200-230 volts
• Integrated 9-18 amp adjustable overload relay with 27-amp maximum
• 120-volt 60 Hz coil included; also rated for 110-volt 50 Hz operation
• 3-pole, 3-phase open-type construction for panel or enclosure mounting
• Class 14 family design for compatibility with Class 14 motor control systems

Compatibility

Designed for use with Class 14 motor control systems. Compatible with three-phase motor circuits rated up to 575 volts and NEMA Size 1 applications as specified in the Class 14 / Type 14DS product family.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before mounting, wiring, or adjusting the overload relay. Verify that the coil voltage matches the control circuit voltage before energizing. Do not exceed the 27-amp maximum or operate outside the rated horsepower and voltage ranges listed on the nameplate.

Technical Specifications

• NEMA Size: 1
• Poles: 3
• Phase: 3
• Amperage (Overload Range): 9-18 amps
• Maximum Amperage: 27 amps
• Horsepower Rating: 3 HP at 200-230 volts; 10 HP at 460-575 volts
• Rated Voltage: 575 volts
• Coil Voltage: 120 volts at 60 Hz; 110 volts at 50 Hz
• Starter Type: Open Type
• Family: Class 14 Type 14DS
• Weight: 3 pounds

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14dse32af
