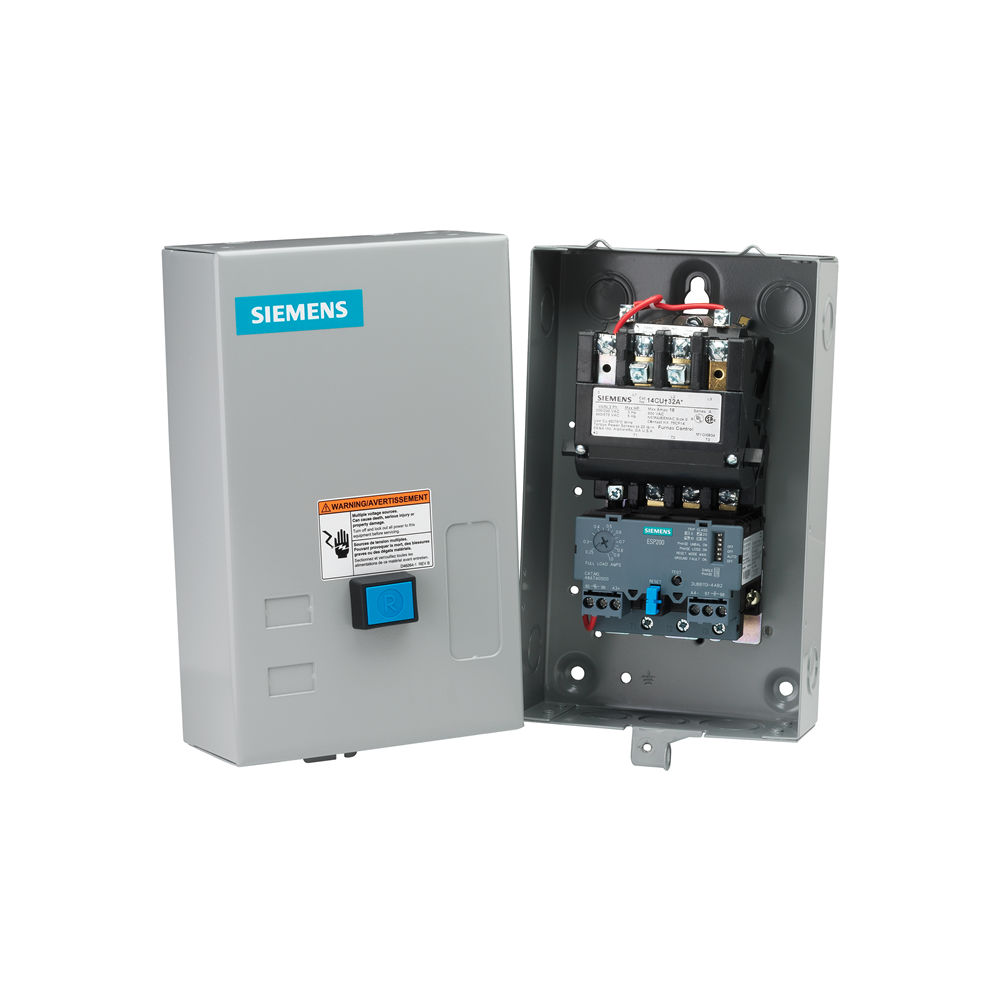

Siemens 14CUB32BC Starter, FVNR SZ0, 0.75-3.4Amps, N1, 240/480

Product Description

The SIEMENS 14CUB32BC is a non-reversing motor starter, Size 0, with a solid-state overload relay. The OLR amp range is 0.75-3.4A and features a 220#240/440#480VAC 60Hz coil. It is a non-combination type with a NEMA 1 enclosure for indoor general purpose use. Suitable for motor control applications.

• Solid-state overload relay
• NEMA 1 enclosure
• 220-240/440-480 VAC coil

Product Highlights

The SIEMENS 14CUB32BC motor starter is designed for reliable motor control with its solid-state overload relay and durable NEMA 1 enclosure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14CUB32BC
• Country of Origin: Mexico

Technical Specifications

• Coil: 220-240/440-480
• Enclosure: NEMA 1
• Nema Size: 0
• Overload Range: 0.75-3.4
• Max HP at 200 V: 1/2
• Max HP at 230 V: 3/4
• Max HP at 460 V: 1 1/2
• Replacement Coil: 75D73070C
• Contact Kit (3 required): 75CF14
• Brand: SIEMENS
• Manufacturer Part Number: 14CUB32BC
• Category: Motors, Actuators, Solenoids and Drivers
• Number of Motors: 1
• Voltage - Load: 600V
• Current - Output: 18A
• Type: Module
• Voltage - Supply: 220 ~ 480VAC
• Motor Type: AC Motor
• Mounting Type: Chassis Mount
• Operating Temperature: -20 C ~ 40 C
