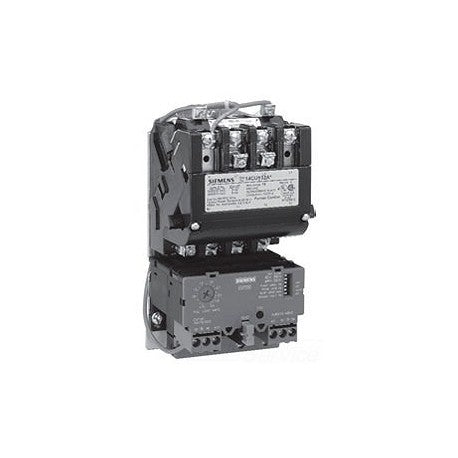

Siemens 14BUB321F Starter, FVNR SZ00, 0.75-3.4Amps, N1OS, 120

Product Description

The Siemens 14BUB321F is a full voltage non-reversing starter, FVNR SZ00, designed for motor control applications. It supports a motor FLA of 0.75-3.4A and features a solid-state overload relay. The starter is built to NEMA Size 00 standards and is suitable for use in NEMA 1 enclosures.

• RoHS Compliant
• Features CAD Models
• Motor FLA: 0.75-3.40A

Product Highlights

The Siemens 14BUB321F starter provides reliable motor control with solid-state overload protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14BUB321F
• Country of Origin: United States

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 14BUB321F
• Type: Full Voltage Non-Reversing Starter
• Construction Standard: NEMA 600V AC
• Size: NEMA Size 00
• UL Cont. Amps: 9A
• Phase: 3
• Coil Voltage: 120V at 60Hz, 110V at 50Hz
• Hp 3-Phase 200V: 0.5 hp
• Hp 3-Phase 230V: 0.75 hp
• Hp 3-Phase 460V: 1.5 hp
• Hp 3-Phase 575V: 2 hp
• Enclosure Type: NEMA 1
• Overload Relay: Solid State
• Motor FLA: 0.75-3.40A
• Auxiliary Contacts: (1) NO
• Manufacturer: Siemens
• Motor Type: AC Motor
• Control / Drive Type: Motor Starter
• Number of Motors: 1
• Current - Output: 3.4A
• Voltage - Supply: 120VAC
