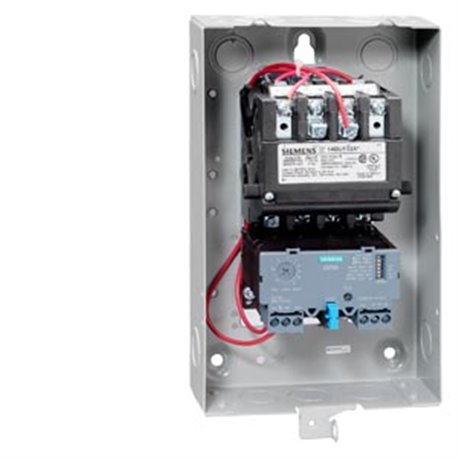

Siemens 14BUA32BH Heavy Duty Full Voltage Non-Reversing Motor Starter

Product Description

The Siemens 14BUA32BH Heavy Duty Motor Starter enhances motor control. This full voltage non-reversing starter operates across various voltage ranges. Suitable for industrial applications, it features a NEMA 1 enclosure and solid-state overload protection. Operates at 60 Hz frequency with a wattage of 8.6 W.

• Rugged industrial design
• Dual voltage and dual frequency coils
• Easy coil access

Product Highlights

Heavy duty motor starter with NEMA 1 enclosure and solid-state overload relay, designed for reliable motor control in industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 14BUA32BH

Technical Specifications

• Phase: 3
• Reset Type: Automatic/Manual/Remote
• Application: Indoor and General Purpose
• Coil Voltage: 380 to 440 VAC at 50 Hz, 440 to 480 VAC at 60 Hz
• Enclosure Type: NEMA 1
• Overload Relay: Solid-State
• Voltage Rating: 600
• Connection Type: Screw Terminal
• Frequency Rating: 60
• Operating Temperature: 104
• Type: Heavy Duty Full Voltage Non-Reversing
• Wattage: 8.6
• Motor Power: 0.17 hp at 200/208/220/230 VAC, 1/3 hp at 460/480 VAC, 1/2 hp at 575/600 VAC
• Amperage Rating: 9
• Construction Standard: NEMA 600V AC
• Size: NEMA Size 00
• UL Cont. Amps: 9A
• Hp 3-Phase 200V: 0.16 hp
• Hp 3-Phase 230V: 0.16 hp
• Hp 3-Phase 460V: 0.33 hp
• Hp 3-Phase 575V: 0.5 hp
• Motor FLA: 0.25-1.00A
• Auxiliary Contacts: (1) NO
