Siemens 14BUA32BA 3Ph N1 Starter 1/3hp@460V 1/6hp@230V Replacement MPN 14BSA32BA

Product Description

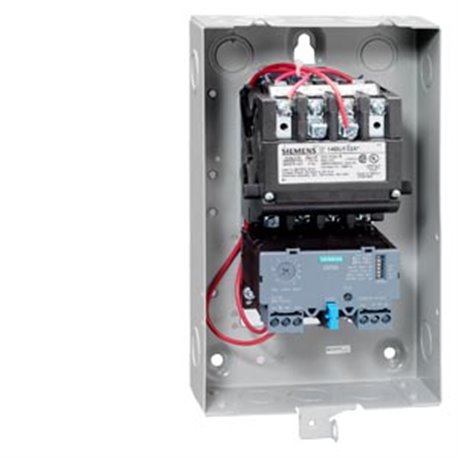

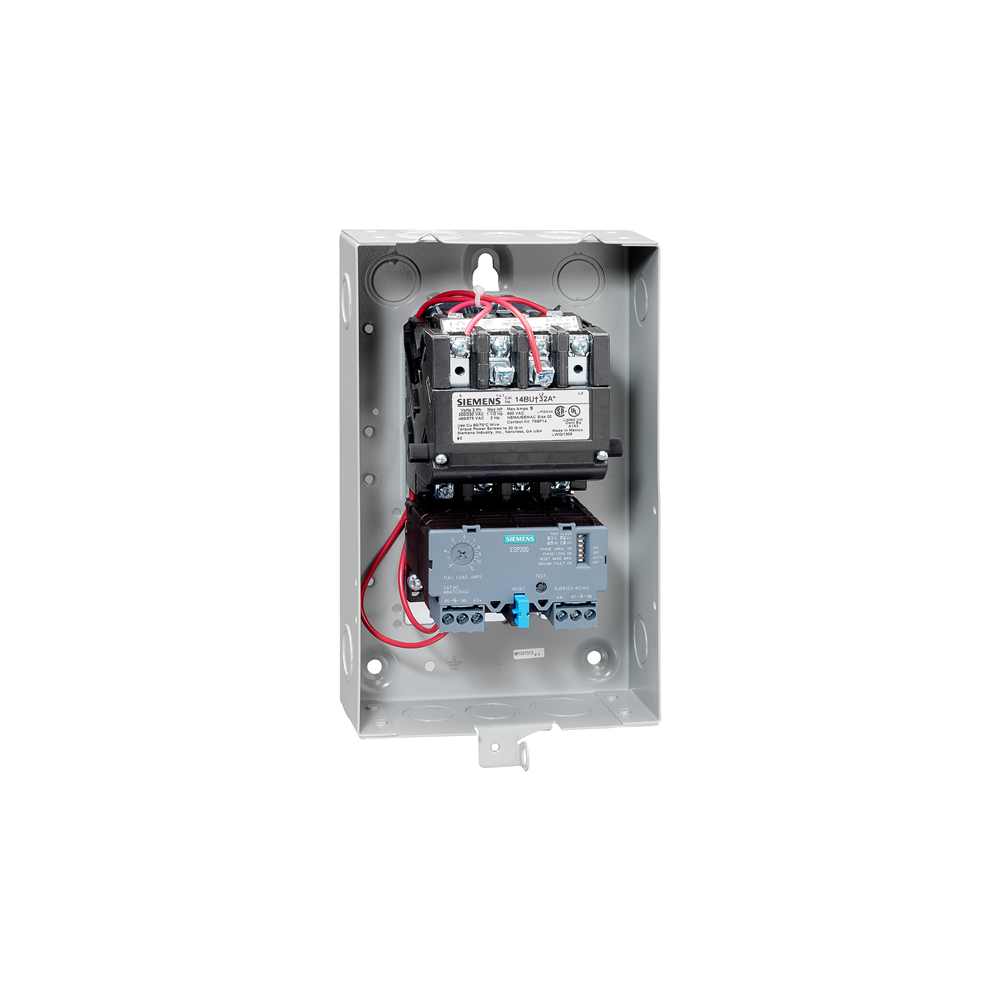

The Siemens 14BUA32BA is a three-phase N1 starter designed for use with motors rated at one-third horsepower at four hundred sixty volts or one-sixth horsepower at two hundred thirty volts. This starter functions effectively within the FVNR configuration and accommodates current ranges from zero point twenty-five to one amp.

• Motor Control Type: N1 Starter
• Voltage Ratings: 120/240V and 460V
• Overload Range: 0.25 to 1 Amps

Product Highlights

This starter is suited for industrial applications requiring reliability and efficiency in motor control. The compact design meets NEMA 1 enclosure standards, ensuring suitability for indoor installations.

Product Information

Standard Information

• Brand: Siemens
• Country of Origin: Mexico

Technical Specifications

• Coil Voltage: 110-120/220-240
• NEMA Size: 00
• Max HP at 230V: 1/6
• Max HP at 460V: 1/3
• Item Weight: 15.04 lbs per EA
• Replacement Coil: 75D73070A
• Contact Kit Required: 75BF14 (three required)
