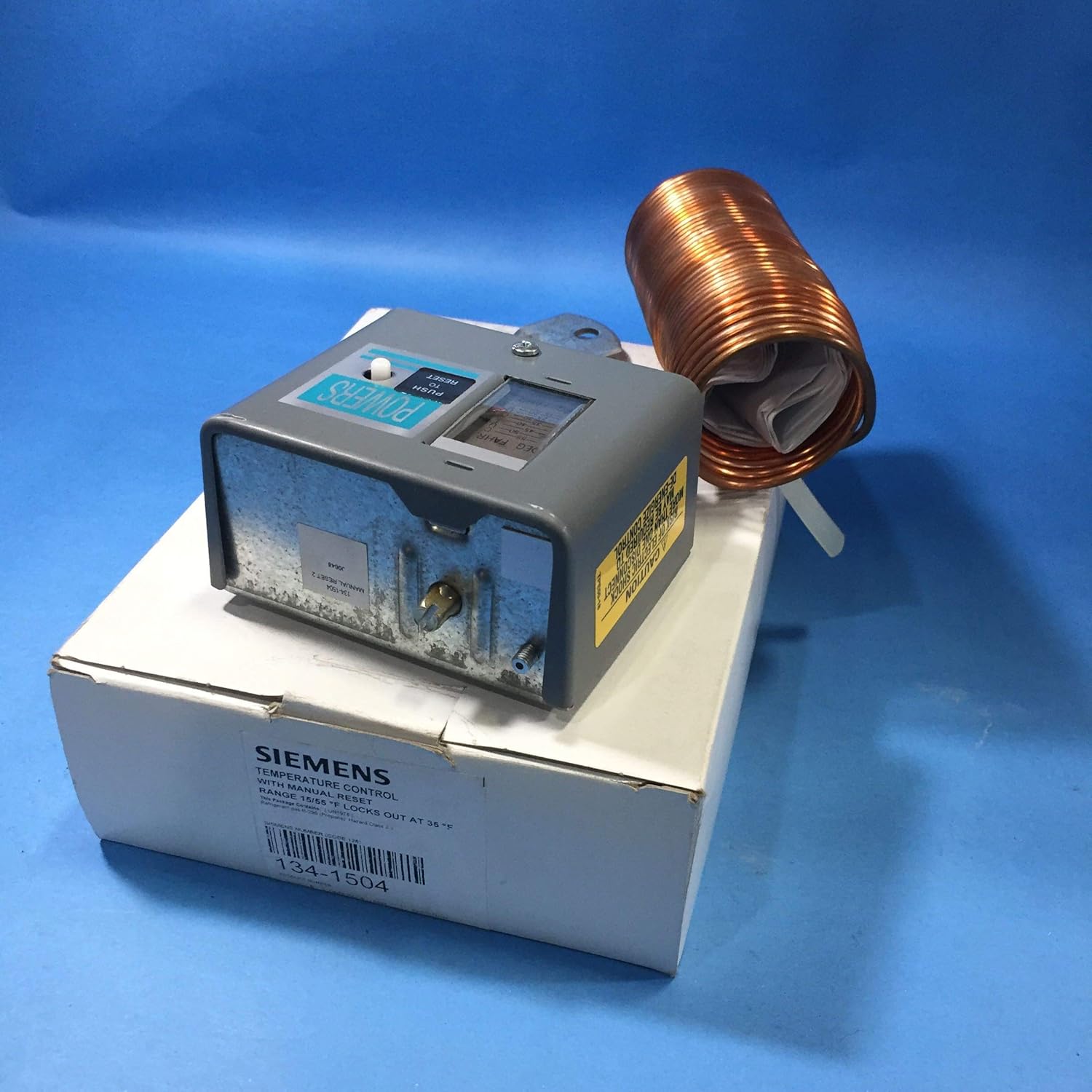

Siemens 134-1504 Powers Controls Manual Reset Thermostat Range 15-55 Degree F

Product Description

The Siemens 134-1504 is a manual reset thermostat designed for low temperature detection with a temperature range of fifteen to fifty-five degrees Fahrenheit. It features a two-circuit design making it suitable for various heating and cooling applications. This thermostat is ideal for protecting equipment susceptible to freezing in localized areas.

• Temperature range: fifteen to fifty-five degrees Fahrenheit
• Manual reset functionality
• Double-pole, single-throw switch

Product Highlights

This thermostat is built to detect potential freeze conditions and facilitate safe operational control in HVAC systems.

Product Information

Standard Information

• Brand: Siemens Building Technology
• MPN: 134-1504

Technical Specifications

• Temperature Range: 15 to 55 degrees Fahrenheit
• Switch Type: DPST
• Voltage Rating: 120 to 277 VAC
• Full Load Amps at 120VAC: 16A
• Full Load Amps at 240VAC: 8A
• Capillary Length: 20 feet
• Weight: 2.48 pounds
• Dimensions: 6.4 x 8.6 x 2.65 inches
