Sicunet CORP-4DMPL 4 Door System with 75W Power Supply (4 Door) ES-4MP

Brand: SICUNET
SKU: CORP-4DMPL
Availability: In Stock

Ships same day if ordered by 12 pm
$1,587.03
$1,587.03
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

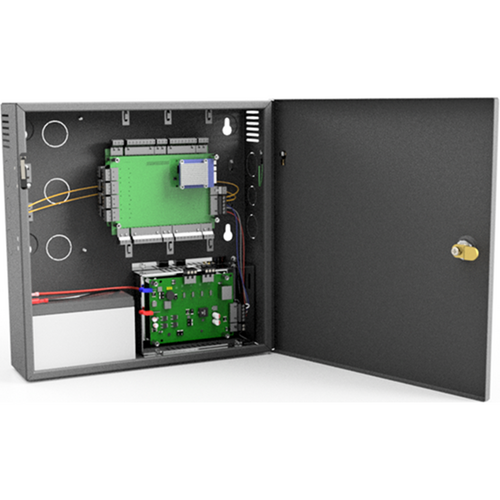

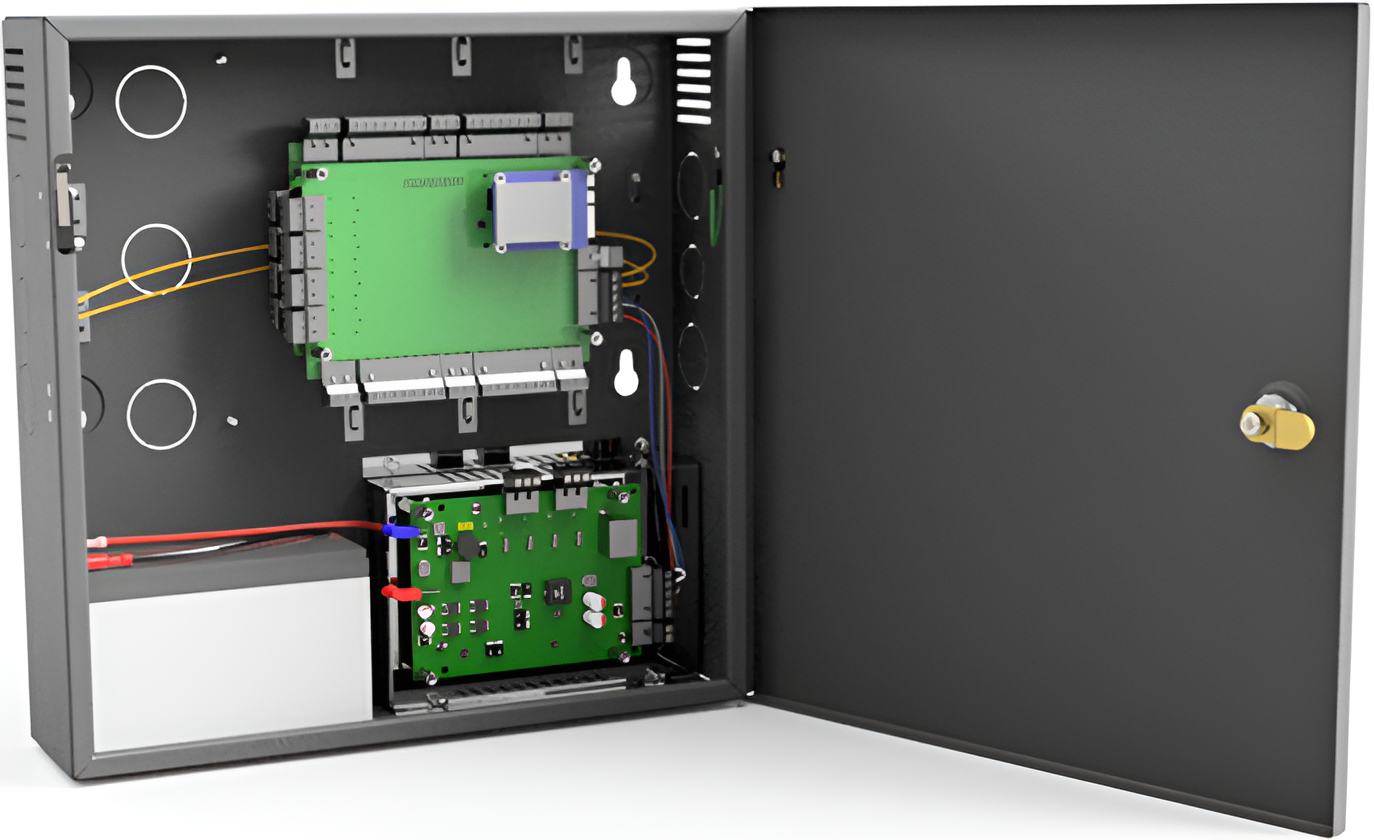

The Sicunet CORP-4DMPL is a 4-door access control system with an integrated power supply. It runs embedded Linux on a quad-core Cortex 1.5 GHz processor, supports browser management, and can process more than 60 transactions per second. The system provides eight Wiegand reader ports, eight relays, 12 global inputs, internal battery backup, and a UL 294 series 7 listing; enclosure dimensions are 14.25 x 14.25 x 3.75 inches.

  • Integrated 75W power supply delivering 12V and 24V DC for controllers, readers, and door locks; standby 450 mA @ 12V.
  • I/O: 8 Wiegand reader ports, 8 relays (4 door lock outputs + 4 auxiliary), 12 global inputs, 4 REX and 4 door position inputs.
  • Hardware: quad-core Cortex 1.5 GHz processor, 1GB DDR3 + 8GB eMMC memory, embedded Linux OS, UL 294 series 7 listing.

Product Highlights

Embedded Linux controller with quad-core 1.5 GHz CPU; integrated 75W power supply and battery backup; supports 4 doors, 8 readers, and multiple relay/inputs in a 14.25 x 14.25 x 3.75 in enclosure.

Product Information

Standard Information

  • Brand: SICUNET
  • Manufacturer Part Number: CORP-4DMPL
  • Country of Origin: United States
Technical Specifications
Brand
Sicunet
MPN
CORP-4DMPL
Model
4DMPL
Processor
Quad-core Cortex, 1.5 GHz
Memory
1GB DDR3, 8GB eMMC
Operating System
Embedded Linux
Transactions
> 60 per second
Input Voltage
115 VAC @ 1.5 A (see notes: current draw rating appears high for 75W PSU)
Integrated Power Supply
75W (provides 12V and 24V DC for controllers, readers, and door locks)
Standby Power Requirement
450 mA @ 12V
Battery Backup
Supported (battery not included)
Recommended Battery Type
12V 7AH sealed lead acid
Enclosure Dimensions
14.25 x 14.25 x 3.75 in (362 x 362 x 95 mm)
Operating Temperature
10°C to 35°C (50°F to 95°F)
Readers (Wiegand)
8 total (one in and one out reader per door)
Reader Power
300 mA @ 12V max per reader
Request to Exit Inputs
4
Door Position Inputs
4
Auxiliary Inputs
4
Tamper Input
Yes
Power Fault Input
Yes
Door Lock Outputs
4 Form C relays, 24V @ 2.0 A (relay contact rating)
Auxiliary Outputs
4 Form C relays, 24V @ 2.0 A (relay contact rating)
Lock Output Power
12 VDC 700 mA; 24 VDC 350 mA (available rated output current)
UL Listing
UL Listed - 294 series 7
Country of Origin
United States
Alternate Part Numbers
SIC_CORP4DMPL, CORP-4DMPL, CORP4DMPL, ES-4MP
MPN/Model Cross Reference
CORP-4DMPL / 4DMPL
