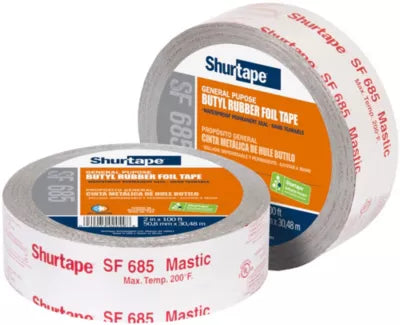

Shurtape sf685-2spt Butyl Foil Tape 2in X 100ft

Product Description

The SHURTAPE sf685-2spt is a ShurMATIC butyl foil tape designed to seal HVAC duct systems in both indoor and outdoor environments. It features a waterproof aluminum foil backing with a butyl adhesive that stays supple and forms a permanent bond to the substrate. The tape is silver printed and comes with a liner for clean, controlled application. HVAC technicians and insulation contractors use it to create airtight, moisture-resistant seals on Class 1 flex duct, sheet metal ductwork, and duct wrap vapor barriers. The aluminum foil facing is paintable with any paint formulated for use on aluminum surfaces.

This tape is suited for residential and light commercial HVAC duct sealing applications. It is approved for indoor use on flex duct connections, sheet metal seams, and duct wrap vapor barriers. It is also approved for subgrade application on PVC-coated duct, making it a versatile option where both above-grade and below-grade installs are required. Each roll measures 2 inches wide by 100 feet long, providing sufficient coverage for single-system duct sealing jobs or targeted repair work.

Key Features

• Waterproof aluminum foil backing with butyl adhesive
• Approved for Class 1 flex duct sealing per typical HVAC code requirements
• Approved for subgrade application on PVC-coated duct
• Stays supple and forms a permanent bond to substrate
• Paintable with aluminum-compatible paint
• Contains no asbestos, CFCs, or PCBs
• Includes liner for controlled, clean application

Compatibility

Designed for use on Class 1 flexible duct, sheet metal ductwork, and duct wrap vapor barriers in residential and commercial HVAC systems, including subgrade applications on PVC-coated duct.

Installation Notes

This tape is typically installed by licensed HVAC technicians or insulation contractors. Before applying, ensure the duct surface is clean, dry, and free of dust or oil to promote a full, permanent bond. Power down the air handling system before working on duct connections. Follow local mechanical codes and manufacturer duct system requirements for minimum tape overlap and sealing standards.

Technical Specifications

• Width: 2 inches
• Length: 100 feet
• Backing Material: Aluminum foil
• Adhesive Type: Butyl
• Color: Silver printed
• Liner: Included
• Application: Indoor and outdoor
• Asbestos / CFC / PCB Content: None

Standard Information

• Brand: SHURTAPE
• Manufacturer Part Number: sf685-2spt
