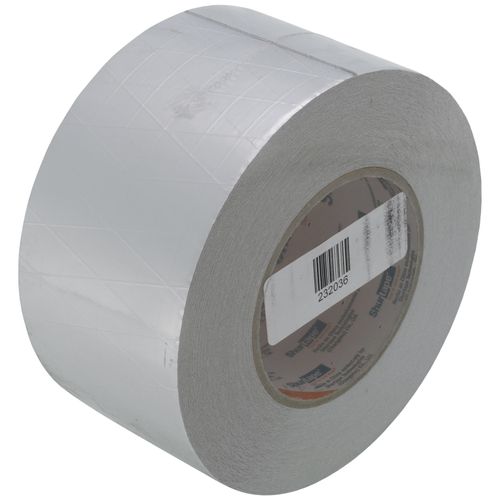

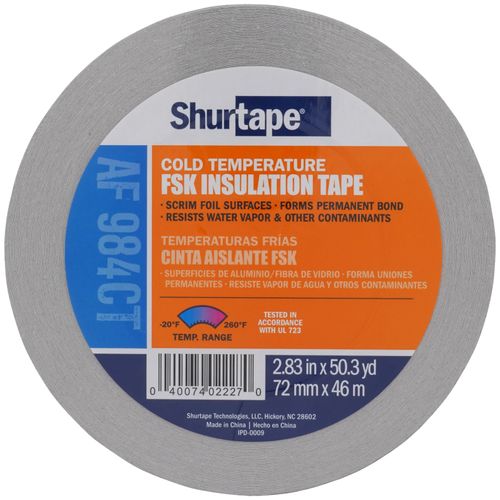

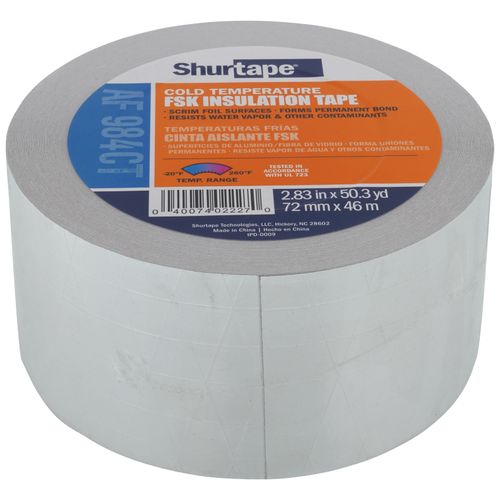

Shurtape AF984CT Cold Temperature Foil/Scrim/Kraft Tape 3 in x 50 yd (AF-984)

Product Description

Shurtape AF984CT is a cold-temperature Foil/Scrim/Kraft (FSK) tape for sealing seams in scrim-reinforced duct insulation and forming a water and vapor barrier. It uses an aluminum foil/fiberglass scrim/kraft backing with a white acrylic cold-temperature adhesive and a non-contaminating silicone-coated paper release liner. Service temperature range is -20 F to 260 F and the product is tested to UL 723 for flame and smoke performance.

• FSK backing: aluminum foil with fiberglass scrim and kraft paper; linered for easy handling and wrinkle-free reinforcement.
• Cold-temperature white acrylic adhesive; service temperature -20 F to 260 F; UL 723 tested (FSI 5 / SDI 0).
• Mechanical: tensile 34 lbs/in width (59.5 N/10 mm), elongation 3%, adhesion to stainless steel 64 oz/in (7.0 N/10 mm); thickness without liner 7.4 mils (0.19 mm).

Product Highlights

Lined FSK insulation tape with cold-temperature acrylic adhesive, UL 723 flame/smoke tested, suitable for sealing scrim-reinforced duct and pipe insulation.

Product Information

Standard Information

• Brand: SHURTAPE
• Manufacturer Part Number: AF984CT
• Country of Origin: United States

Technical Specifications

• Brand: Shurtape
• Manufacturer Part Number: AF984CT
• Replacement Part Number: AF-984
• Product Type: Foil/Scrim/Kraft (FSK) insulation tape
• Material: Aluminum foil / fiberglass scrim / kraft paper
• Adhesive: Cold-temperature white acrylic-based adhesive
• Liner: Non-contaminating silicone-coated white paper release liner
• Service Temperature Range: -20 F to 260 F (-29 C to 127 C)
• Adhesion to Stainless Steel: 64 oz/in width (7.0 N/10 mm)
• Tensile Strength: 34 lbs/in width (59.5 N/10 mm)
• Elongation: 3%
• Thickness (with liner): 11.1 mils (0.28 mm)
• Thickness (without liner): 7.4 mils (0.19 mm)
• Tested Standard: UL 723
• Flame Spread Index: 5
• Smoke Development Index: 0
• Lengths Available: 50 yd
• Widths Available: 1.88 in, 2.83 in, 3.77 in
• Item Weight: 0.8 Kilograms
• Water Resistance: Water resistant
• Recommended Uses: Sealing seams in scrim-reinforced duct insulation; HVAC and duct insulation applications
• Applicable Standards: FSI 5 / SDI 0; tested in accordance with UL 723
