Product Description

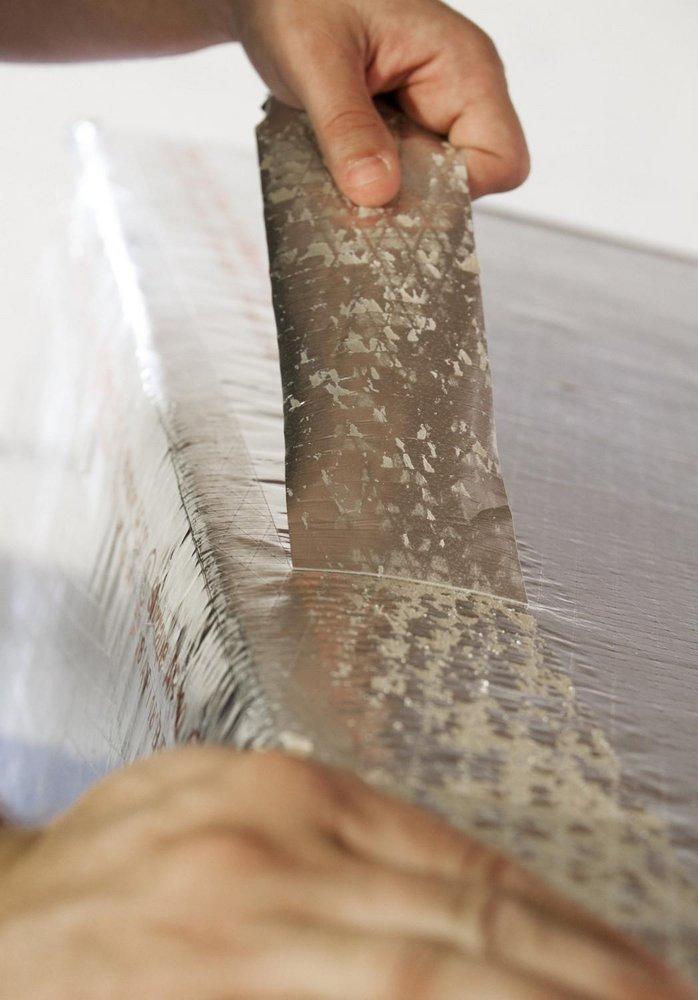

The SHURTAPE AF 100 is a foil tape designed for both indoor and outdoor use. This UL-Printed Foil Tape is ideal for joining and sealing joints, connections, and seams on rigid fiberglass ductboard and flexible air ducts. It offers superior stability during temperature fluctuations and resists water vapor and HVAC contaminants.
- Continuous Roll
- Excellent adhesion to rigid fiberglass ductboard and flexible air duct
- Resists water vapor and HVAC contaminants
Product Highlights
The SHURTAPE AF 100 foil tape creates airtight bonds and offers superior stability in extreme temperatures.
Product Information
Standard Information
-
Brand: SHURTAPE
-
Manufacturer Part Number: AF 100
-
Country of Origin: United States
Technical Specifications
-
Item: Foil Tape
-
Size: 2 1/2" x 60yd
-
Brand: Shurtape
-
Color: Silver
-
Shape: Continuous Roll
-
Series: AF 100
-
Adhesive: Acrylic-based adhesive
-
Material: 2 mil, dead-soft aluminum foil
-
Standards: FSI 25/SDI 50, UL 181A-P, UL 181B-FX, UL 723, UL Listed
-
Tape Type: Foil Tape
-
Thickness: 4.2 mil
-
Elongation: 2%
-
Tape Brand: SHURTAPE
-
Tape Color: Silver
-
Tape Shape: Continuous Roll
-
Tape Width: 2 1/2 in
-
Environment: Indoor and Outdoor
-
Tape Length: 60 yd
-
Product Form: Continuous Roll
-
Tape Adhesive: Acrylic
-
Tape Sub-Type: UL-Printed Foil Tape
-
Liner Included: Yes
-
Liner Material: Paper
-
Tape Thickness: 4.2 mil
-
Common Industry: Construction
-
Duct Tape Grade: HVAC
-
Duct Tape Width: 2-1/2"
-
Tape Elongation: 5 %
-
Brand and Series: Shurtape AF 100
-
Tensile Strength: 25 lb./in.
-
Adhesion Strength: 70 oz./in.
-
Adhesion to Steel: 70 oz/in
-
Metric Tape Width: 63.5 mm
-
Performance Temp.: -20 Degrees to 260 Degrees F
-
Tape Color Family: Metallic
-
Temperature Range: -20 Degrees to 260 Degrees F
-
Metric Tape Length: 55 m
-
Specifications Met: UL Listed
-
Tape Core Diameter: 3 in
-
Imperial Tape Width: 2 1/2 in
-
Imperial Tape Length: 60 yd
-
Tape Adhesive Format: Single-Sided
-
Tape Backing Material: Aluminum
-
Tape Tensile Strength: 25 lb/in
-
Tape Adhesive Material: Acrylic
-
Tape Adhesive Strength: 70 oz/in
-
Number of Adhesive Sides: 1.0
-
Tape Backing Construction: Foil
-
Tape Resistance Properties: Water Vapor Resistant
-
Adhesion to Stainless Steel: 70 oz/in width
-
Max. Tape Performance Temp.: 260 Degrees F
-
Min. Tape Performance Temp.: -20 Degrees F
-
Tensile (Breaking Strength): 25 lbs/in width
-
Maximum Tape Performance Temperature: 260 Degrees F
-
Minimum Tape Performance Temperature: -20 Degrees F
-
Country of Origin (subject to change): United States
-
Application: HVAC, Sealing
-
CARB OTC LEED Compliant: No
-
Collection: AF 100
-
Color Finish Category: Silver Tones
-
Color Finish Name: Silver
-
Overall Grade/Function: HVAC, UL 181A-P/B-FX Listed
-
Backing: 2 mil, dead-soft aluminum foil
-
Adhesive Type: Acrylic
-
Interior/Exterior: Interior/Exterior
-
Maximum Working Temperature: 260 F
-
Minimum Working Temperature: -20 F
-
Package Quantity: 1
-
Certifications & Standards: UL Listed
-
ADA Compliant: ADA Compliant
-
GSA Approved: GSA Approved
-
Made in the USA: Made in the USA
-
TAA/BAA Compliant: TAA/BAA Compliant
-
HazMat: Hazardous
-
Size Measure: IN
-
Weight Measure: LB
