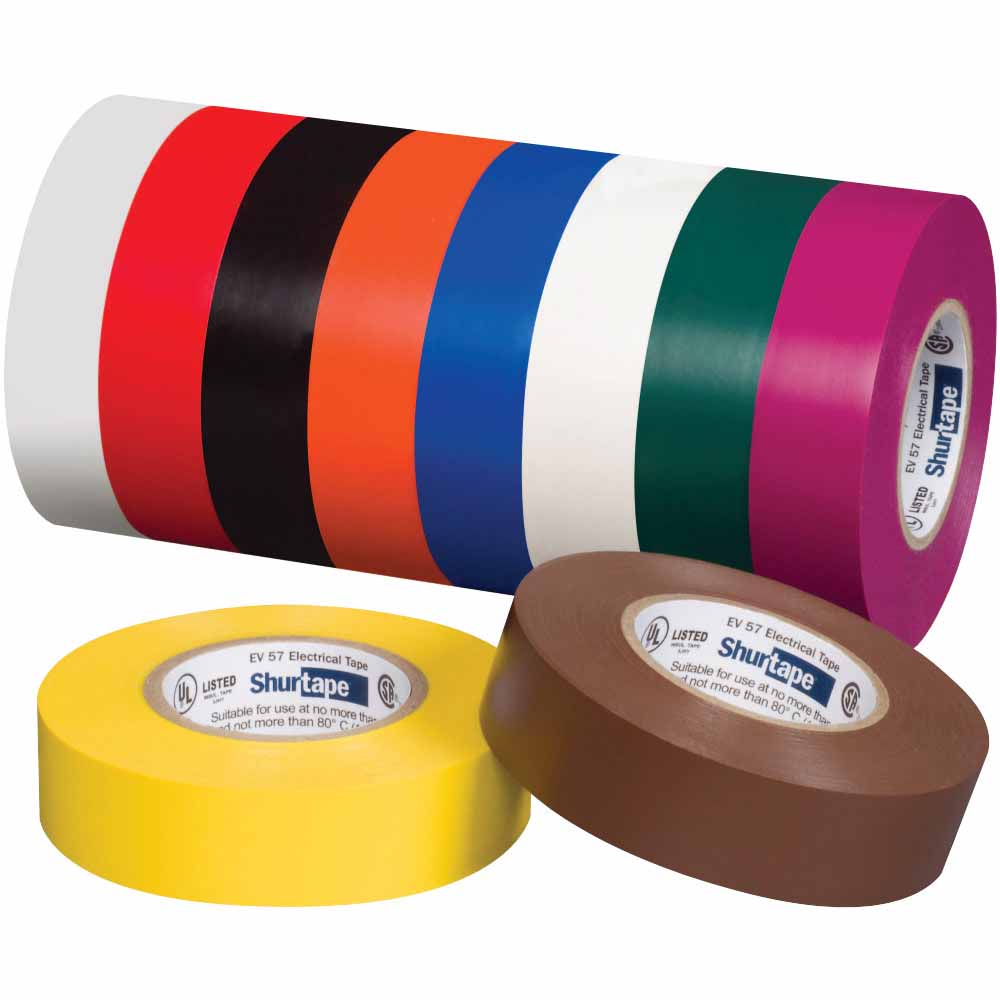

Shurtape 187742 EV 057 Purple Electrical Tape

Product Description

The Shurtape 187742 EV 057 is an electrical tape used for various mechanical and electrical tasks. It measures seven mils thick and can handle electrical splices up to six hundred volts.

• General-purpose grade 7 mil thick electrical tape.
• UV resistant, oil resistant, and water resistant.
• Non-corrosive, rubber-based adhesive for different applications.

Product Highlights

This tape is suitable for color-coding and phasing, making it versatile for both indoor and outdoor use.

Product Information

Standard Information

• Brand: Shurtape
• MPN: 187742

Technical Specifications

• Applicable Standards: UL Listed, CSA 22.2
• Color: Purple
• Backing Material: Polyvinylchloride (PVC)
• Adhesive: Non-corrosive, rubber-based
• Adhesion to Stainless Steel: 24 oz/in width
• Elongation: 2.5%
• Tensile Strength: 16 lbs/in width
• Thickness: 7 mil
• Service Temperature Range: 32 F - 176 F
• Core Size: 1.25 inches
• Roll Diameter: 4.178 inches
• Roll Width: 0.75 inches
• Adhesive Type: Rubber
• Dielectric Strength: 1300 V/mil
• Length: 66 ft
• Material: Polyvinylchloride
• Maximum Operating Temperature: 176 degrees F
• Series: EV 057
• Item Weight: 0.22 lbs per roll
• Width: 0.75 inches
• Temperature Rating: 32 - 176 degrees F
