Product Description

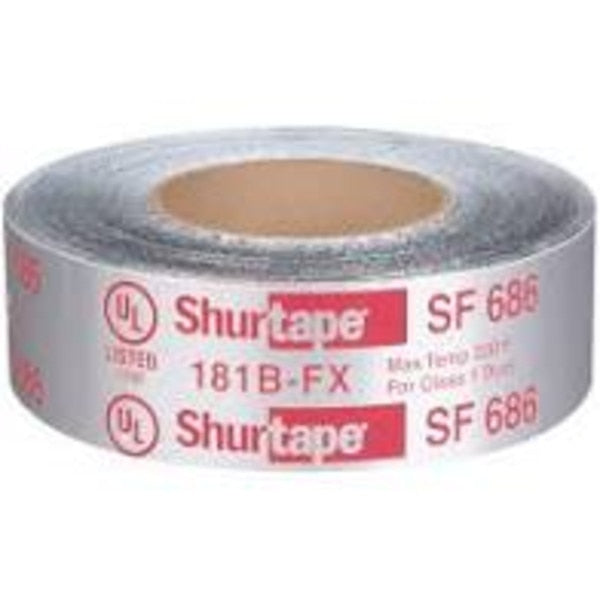

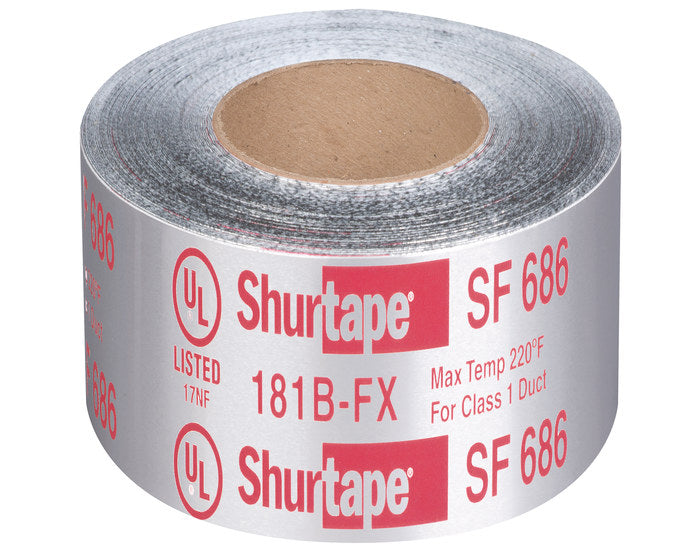

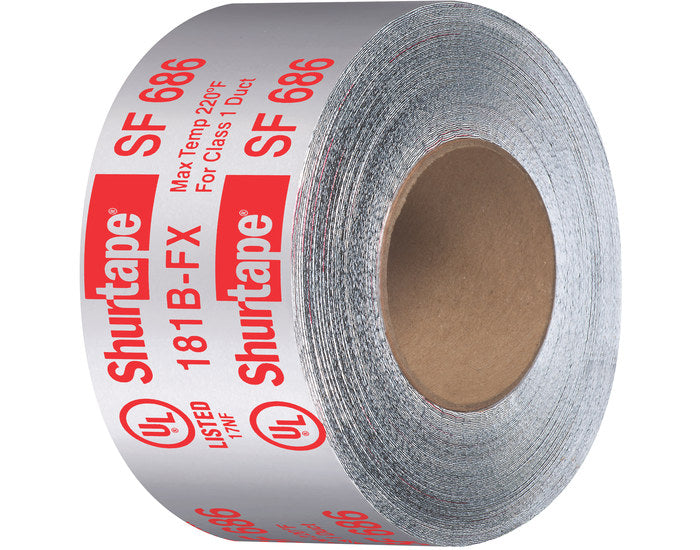

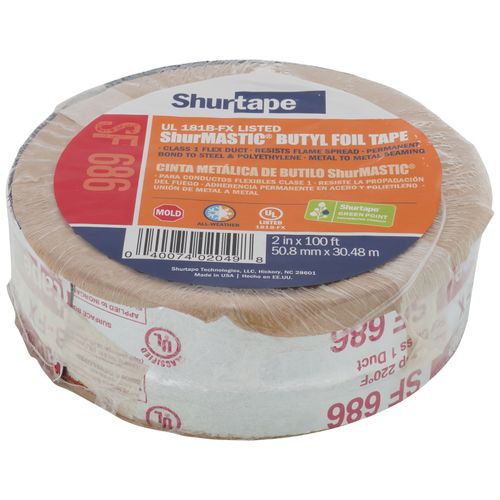

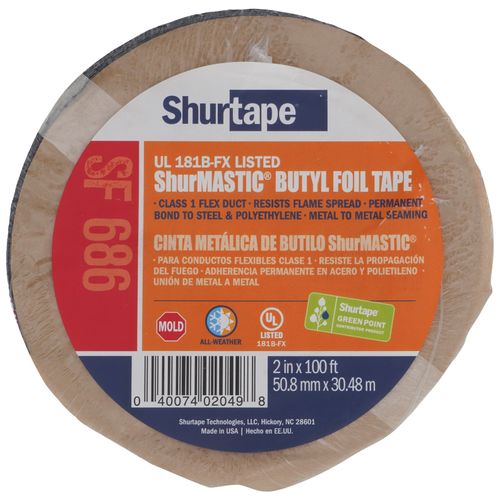

The SHURTAPE 183431 is a Printed Aluminum Foil Tape, specifically the ShurMastic SF 686, measuring 2 inches in width and 100 feet in length. This mastic foil tape is designed for airtight and moisture-free sealing of Class 1 Flex Duct, sheet metal, and duct wrap vapor barriers. It is also approved for subgrade application on PVC coated duct, suitable for both indoor and outdoor use. It features a non-flammable butyl rubber adhesive system.
- Printed design with aluminum backing and foil tape construction.
- Provides airtight and moisture-free sealing for Class 1 Flex Duct, sheet metal, and duct wrap vapor barriers.
- Features a non-flammable butyl rubber adhesive system, UL 181B-FX listed, and suitable for indoor/outdoor use.
Product Highlights
Durable indoor/outdoor mastic foil tape with a printed design for sealing applications.
Product Information
Standard Information
-
Brand: SHURTAPE
-
Manufacturer Part Number: 183431
-
Country of Origin: US
Technical Specifications
-
Brand: SHURTAPE
-
MPN: 183431
-
Material: Aluminum Backing Foil
-
Color: Silver
-
Length: 100 feet
-
Width: 2 inches
-
Tape Type: Printed Aluminum Foil
-
Trade Name: ShurMASTIC
-
Total Thickness: 17 mil
-
Maximum Operating Temperature: 200 °F
-
Minimum Operating Temperature: -20 °F
-
Tensile Strength: 23.8 lbs/in
-
Series: SF 686
-
Adhesion Strength: 111 in-oz
-
Adhesive Material: Non-Flammable Butyl Rubber
-
Country of Origin: US
-
Standards: ASTM D3759, ASTM D3759M, ASTM D3330, ASTM D3330M, ASTM D3652, ASTM D3652M, UL 723, UL 181B-FX, Pressure Classes SMACNA 1/2, 1, 2, 3, 4 and 6, Seal Classes A, B, C, EU Directive 2011/65/EU, EU Directive 2012/19/EU, FDA Compliant
