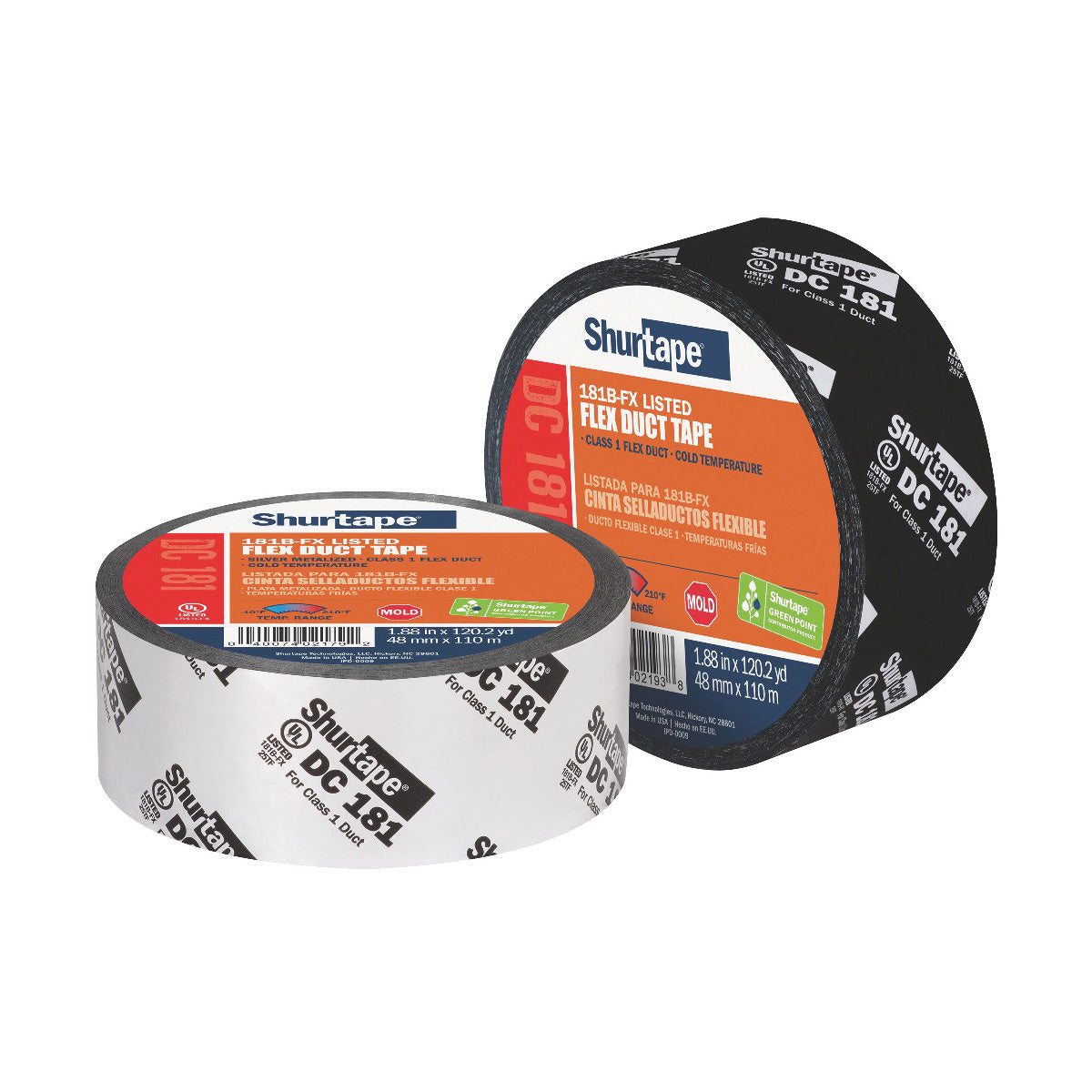

Shurtape 164686 DC 181 HVAC Grade Printed Film Tape 110 m L x 48 mm W Replacement MPN

Product Description

Shurtape offers the 164686 DC 181 HVAC Grade Printed Film Tape, designed for use in various heating and cooling applications. This tape, measuring one hundred ten meters in length and forty-eight millimeters in width, has a thickness of 2.7 mil. It features a high tack cold temperature acrylic adhesive and a backing made from biaxially oriented polypropylene film.

• UL 181B-FX listed for use on Class 1 flex ducts.
• High performance adhesive effective from negative ten degrees Fahrenheit to two hundred ten degrees Fahrenheit.
• Clearly printed with UL Listing for easy identification.

Product Highlights

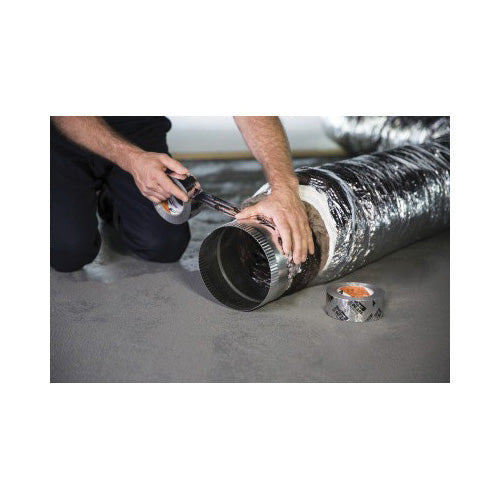

Effective for connecting, joining, sealing, and patching flexible air ductwork.

Product Information

Standard Information

• Brand: Shurtape
• Country of Origin: US

Technical Specifications

• Series: DC 181
• Length: 110 m
• Width: 48 mm
• Thickness: 2.7 mil
• Adhesive Material: High Tack Cold Temperature Acrylic
• Backing Material: Biaxially Oriented Polypropylene Film
• Tensile Strength: 31 in-lb
• Adhesion Strength: 38 in-oz
• Maximum Operating Temperature: 210 deg F
• Minimum Operating Temperature: -10 deg F
