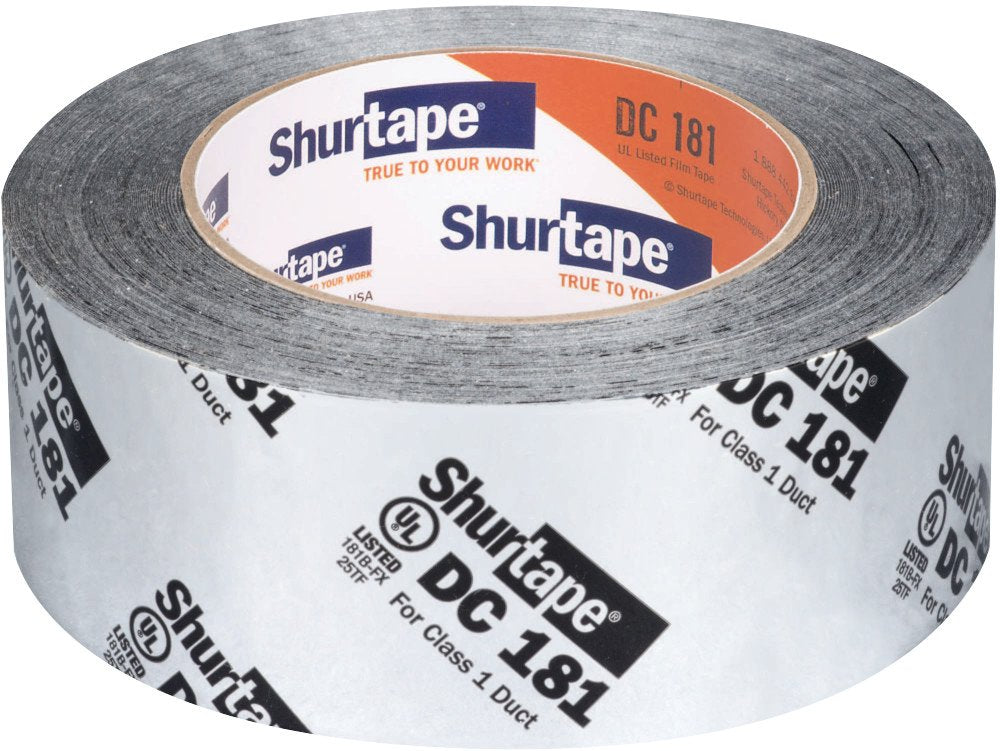

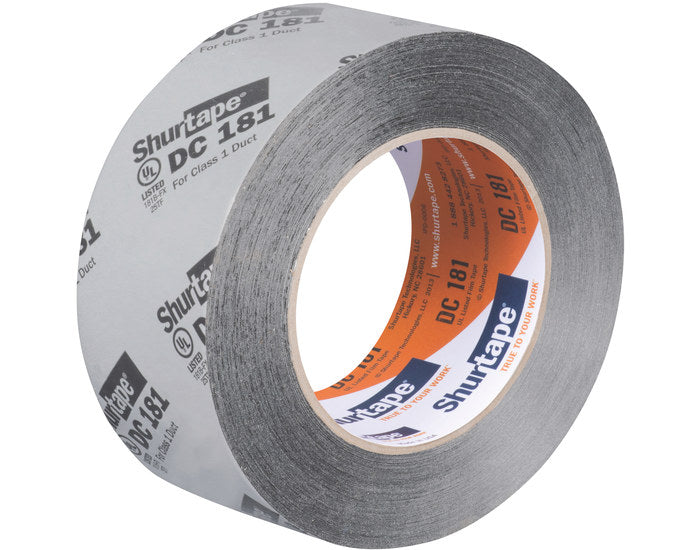

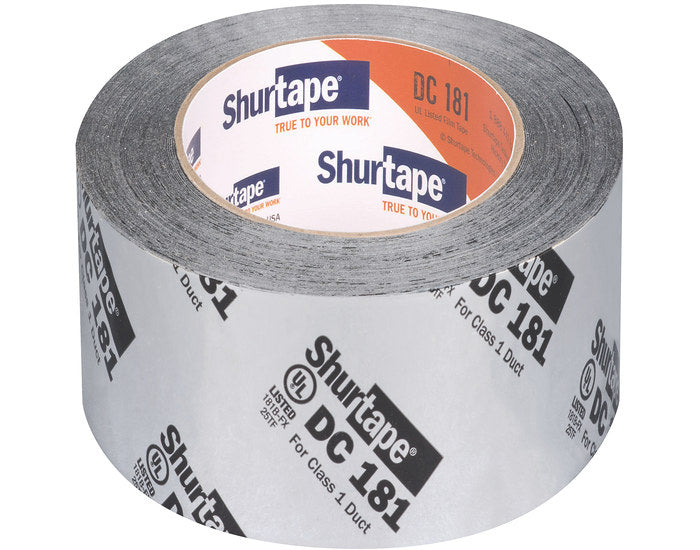

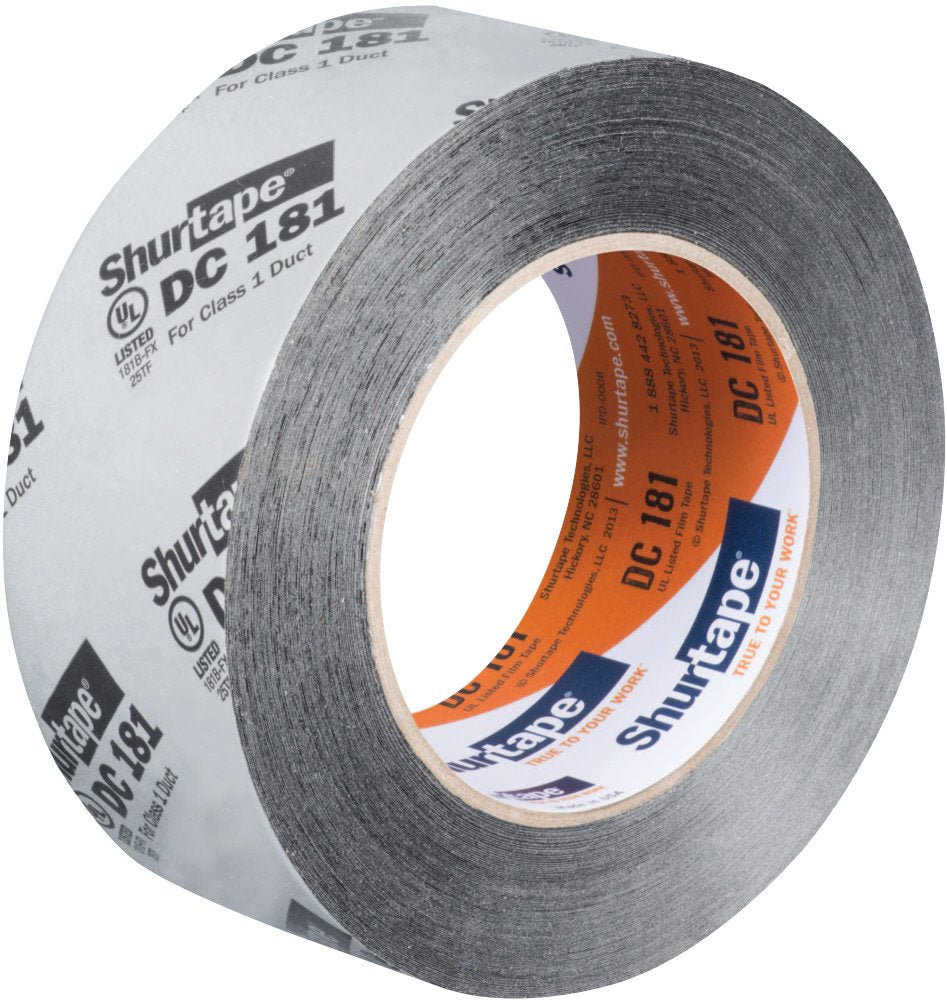

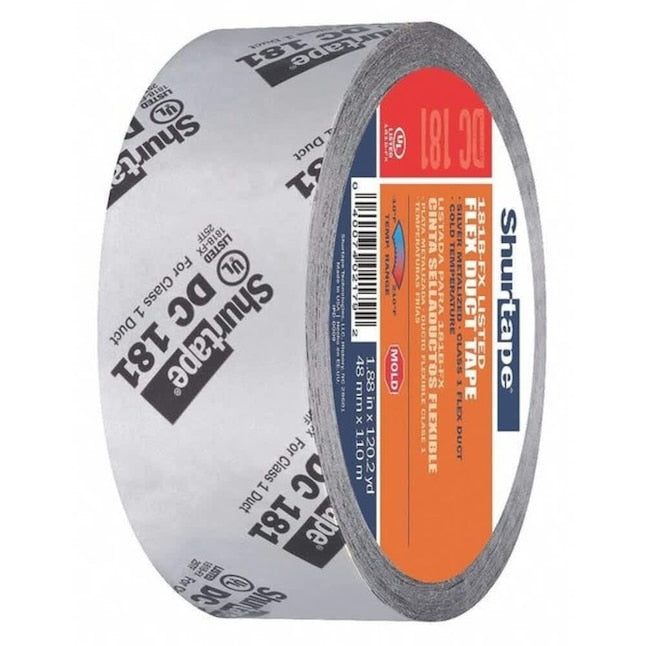

Shurtape 164686 DC 181 HVAC Grade Printed Film Tape 110 m L x 48 mm W

Product Description

The Shurtape 164686 DC 181 is a UL 181B-FX listed film tape designed for use on Class 1 flex duct, ideal for connecting, joining, sealing, and patching flexible air ductwork. It features a high tack, cold temperature acrylic adhesive system and performs well in temperatures ranging from -10 to 210 deg F.

• Excellent conformability to uneven surfaces
• Easy to unwind and tear
• UL listing is clearly printed on the tape for easy identification

Product Highlights

This HVAC grade tape has a biaxially oriented polypropylene film backing and is ideal for use in a variety of applications.

Product Information

Standard Information

• Brand: SHURTAPE
• Manufacturer Part Number: 164686
• Country of Origin: US

Technical Specifications

• Type: HVAC Grade
• Width: 48 mm
• Length: 1.89
• Series: DC 181
• Thickness: 2.7 mil
• Backing Material: Biaxially Oriented Polypropylene Film
• Tensile Strength: 31 lbs/in
• Adhesion Strength: 38 in-oz
• Adhesive Material: High Tack Cold Temperature Acrylic
• Country of Origin: US
• Manufacturer Name: Shurtape Technologies
• Maximum Operating Temperature: 210 deg F
• Minimum Operating Temperature: -10 deg F
• Certifications: ASTM D3759|ASTM D3759M|ASTM D3330|ASTM D3330M|ASTM D3652|ASTM D3652M|ASTM D3759|ASTM D3759M|EU Directive 2011/65/EU and 2012/19/EU|FDA Compliant|UL 181B-FX|FSI 15/SDI 30|UL 723
• Elongation: 200%
• Brand and Series: Shurtape DC 181
• Imperial Tape Length: 120 1/4 yd
• Imperial Tape Width: 1 7/8 in
• Temperature Rating: -10 to 210 deg F
• Elongation at Break: 200%
• Standards Met: UL 181B-FXUL ListedFSI 25/SDI 50UL 723
