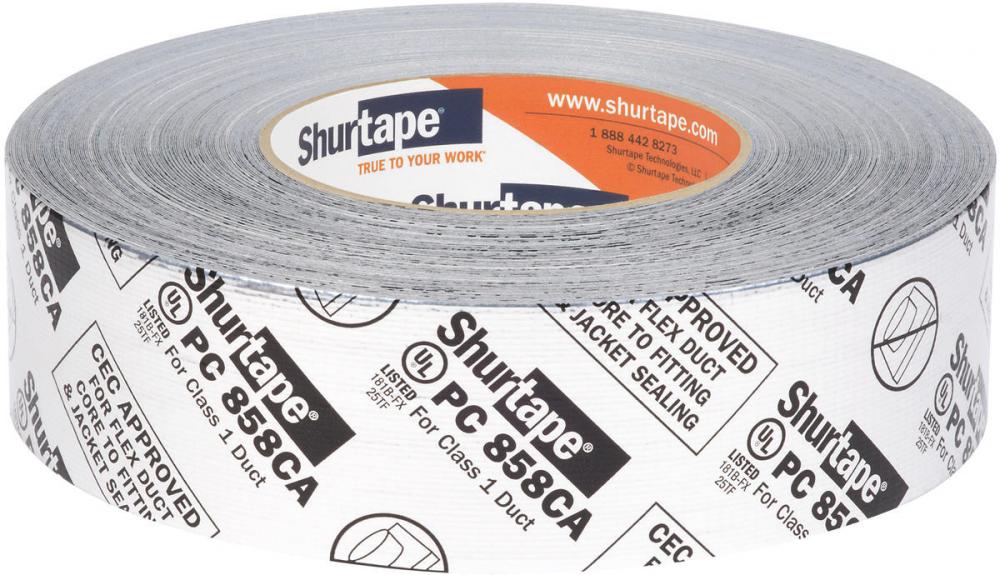

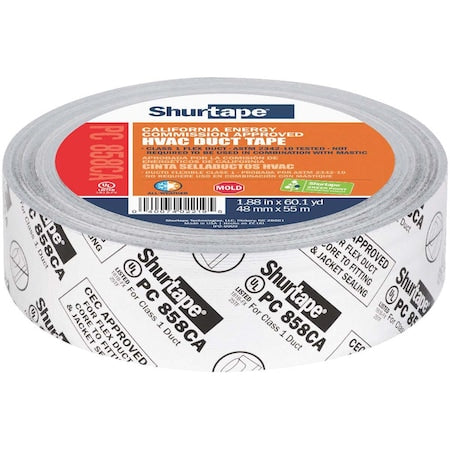

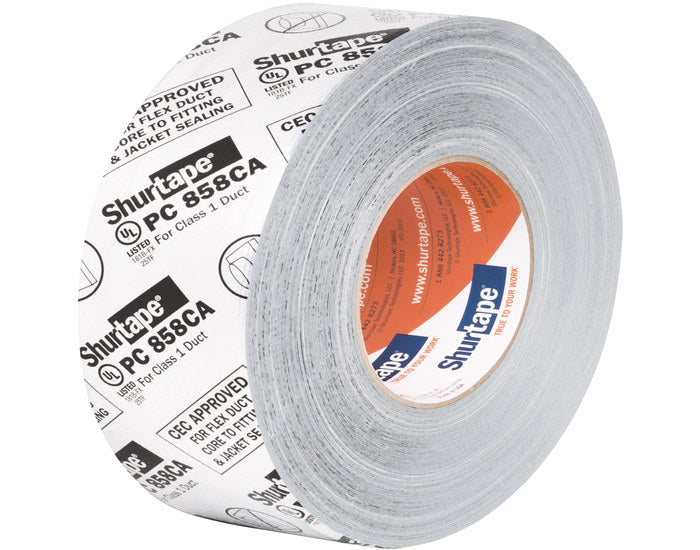

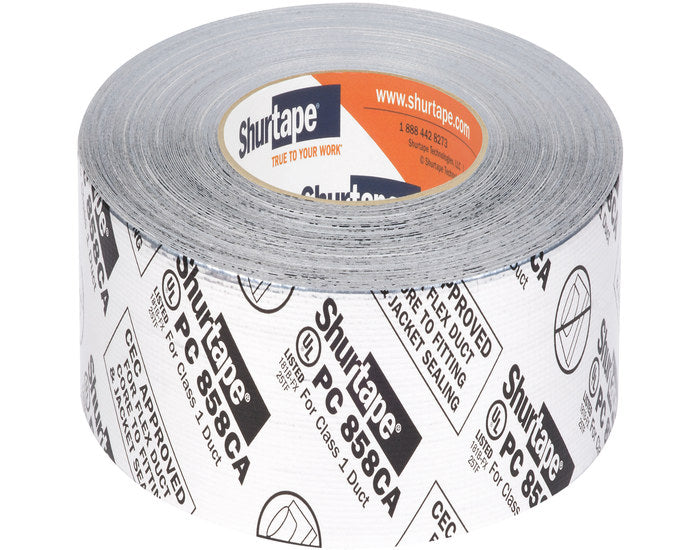

Shurtape 143969 PC 858CA metalized printed cloth duct tape 48mm x 55m

Product Description

The Shurtape 143969 PC 858CA is a metalized printed cloth duct tape, 48mm wide and 55m long, designed for HVAC applications. This CEC approved and UL 181B-FX Listed tape is used to seal, seam, and join Class 1 Flex Duct systems, including sealing flex duct to fitting joints without liquid mastic. It features a synthetic rubber blend adhesive, a 14 mil thickness, and offers a tensile strength of 27 lbs/in. The tape operates effectively within a temperature range of 50 F to 212 F.

• UL 181B-FX Listed and CEC approved for HVAC applications
• Features a synthetic rubber blend adhesive and 14 mil thickness
• Resistant to flame spread, smoke generation, mold growth, and high temperatures

Product Highlights

Ideal for sealing and joining Class 1 Flex Duct systems in HVAC, offering superior shear strength and meeting strict UL and CEC requirements.

Product Information

Standard Information

• Brand: SHURTAPE
• Manufacturer Part Number: 143969
• Country of Origin: United States

Technical Specifications

• Country of Origin: United States
• Width: 48 mm
• Length: 55 m
• Type: Metalized Duct
• ASTM Standard: E 2342-10
• UL Listing: 181B-FX
• Flame Spread Index: 15
• Smoke Development Index: 30
• Backing Material: Waterproof, metalized polyethylene film with a cloth carrier
• Adhesive Type: Synthetic rubber blend
• Thickness: 14 mil
• Operating Temperature Range: 50 F to 212 F
• Tensile Strength: 27 lbs/in
• Elongation at Break: 10%
• Adhesion Strength: 70 oz/in width
• Core Size: 3.0"
