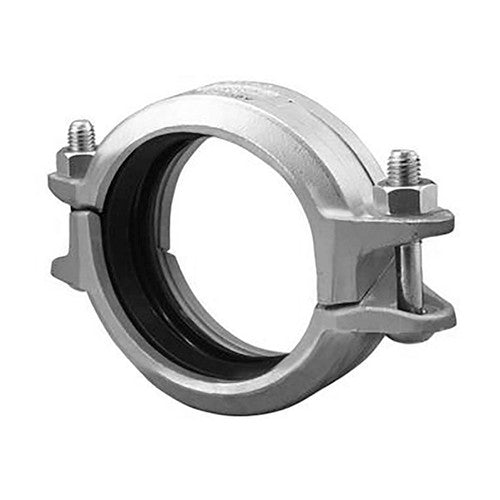

Shurjoint SS7 Stainless Steel Rigid Grooved Coupling

Product Description

The Shurjoint SS7 series is a rigid grooved coupling made from 316 stainless steel, suitable for Sch. 5S, Sch. 10S, and Sch. 40S stainless steel pipe. This coupling ensures a strong connection through a tongue and groove mechanism and heavy-duty bolt pad design, preventing damage to lightweight pipe or fittings.

• Designed for Sch. 5S, Sch. 10S, and Sch. 40S stainless steel pipe.
• Incorporates a tongue and groove mechanism for a secure fit.
• Includes CF8M housing segments, an EPDM gasket, and stainless steel track bolts with heavy-duty nuts.

Product Highlights

This coupling is ideal for various pipe sizes and is built to withstand high pressure.

Product Information

Standard Information

• Connection: Grooved coupling
• Housing: Type CF8M 316 Stainless steel

Technical Specifications

• Max Working Pressure: 600 PSI
• Gasket: EPDM
• Bolts & Nuts: 304 Stainless steel track bolts & heavy-duty nuts
• Certifications: ASTM A743 CF8M (housing), NSF/ANSI 61 (gasket), ASTM A193 B-8M (bolts), ASTM A193 B8M (nuts), UL Listed (Canada & US) and FM Approved
