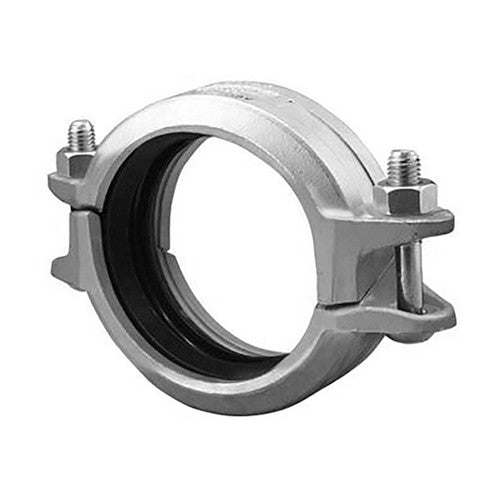

Shurjoint SS7 Series 316 Stainless Steel Rigid Grooved Coupling

Product Description

The Shurjoint SS7 series 316 stainless steel rigid grooved coupling provides a reliable connection for stainless steel piping systems. It is suitable for use with Schedule 5S, Schedule 10S, or Schedule 40S pipes. The coupling features a tongue and groove design, which enhances its ability to maintain structural integrity under pressure. This coupling is equipped with CF8M housing segments, a durable EPDM gasket, and stainless steel bolts and nuts for a strong assembly.

• Compatible with Sch. 5S, Sch. 10S, and Sch. 40S stainless steel pipe.
• Tongue and groove mechanism for a secure connection.
• Includes CF8M housing, EPDM gasket, and stainless steel track bolts and heavy-duty nuts.

Product Highlights

This coupling is ideal for applications where a robust and durable connection is required in stainless steel piping systems.

Product Information

Standard Information

• Connection: Grooved coupling
• Housing: Type CF8M 316 Stainless steel

Technical Specifications

• Max Working Pressure: 600 PSI
• Gasket: EPDM
• Bolts & Nuts: 304 Stainless steel track bolts & HD nuts
• Certifications: ASTM A743 CF8M, NSF/ANSI 61, ASTM A193 B8M, UL Listed, FM Approved
