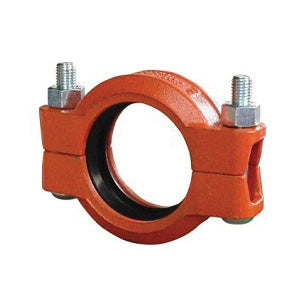

SHURJOINT SJXH10008PT Extra Heavy Rigid Coupling, 8 in, Ductile Iron

Product Description

The SHURJOINT Model SJXH10008PT is a rigid coupling designed for high-pressure applications. This coupling can withstand pressure up to 1000 psi and is suitable for a variety of installations, including standard roll and cut-grooved pipes. It features a C-shaped gasket, heavy-duty bolts, and a painted orange finish. For sizes ranging from two to four inches, proper torque application is required, while sizes six inches and above allow for direct metal-to-metal contact during installation.

• Designed for high pressure services
• Compatible with standard roll and cut-grooved pipes
• Includes a standard gasket and heavy-duty hardware

Product Highlights

This model supports installation on stainless steel pipes and meets various industrial standards for durability and performance.

Product Information

Standard Information

• Manufacturer: Shurjoint
• Type: Rigid Coupling

Technical Specifications

• Nominal Size: 8 in
• Material: Ductile Iron
• Pressure Rating: 1000 psi
• Temperature Rating: -20 to 180 deg F
• Length: 14.33 in
• Thickness: 2-3/8 in
• Finish: Painted
• Series: Model XH-1000
