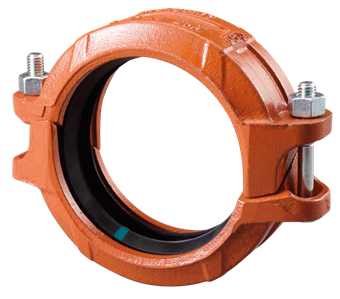

SHURJOINT SJTZ058PEA Rigid Coupling

Product Description

The SHURJOINT Model Z05, MPN SJTZ058PEA, is a rigid coupling meant for piping services under moderate pressure. This coupling is designed for various applications, including fire mains, straight runs, and valve connections. Its angle-pad design enables the housing to slide along the bolt pads, which produces an offset clamping action. This helps maintain a secure joint that minimizes movement in long, straight runs. The coupling is a two-part fitting with groove connections and features an EPDM gasket for reliable sealing.

• Rigid coupling designed for moderate pressure piping services.
• Angle-pad design for a secure and rigid joint.
• Compatible with groove connections.

Product Highlights

This coupling is a reliable choice for trade professionals needing a durable solution in various plumbing applications.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJTZ058PEA

Technical Specifications

• Material: Cast iron (ASTM A536 65-45-12)
• Connection Type: Groove (coupling)
• Sealing Material: Ethylene-propylene diene monomer rubber (EPDM)
• Nominal Diameter: DN 200
• Size: 8 inches
• Outer Pipe Diameter: 219.1mm
• Shape: Straight (0°)
• Maximum Operating Pressure: 348 psi
• Maximum Medium Temperature: 100 °F
• Length: 64mm
• Weight: 13.38 lb
• Dimensions: 2.52x12.68x10.39 inches
