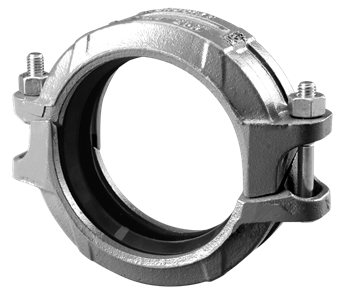

SHURJOINT SJTZ058GEA Rigid Coupling - 8 Inch

Product Description

The SHURJOINT SJTZ058GEA is a rigid coupling designed for piping services. It is suitable for applications such as fire mains, straight runs, and valve connections. This coupling features an angle-pad design that enhances its performance in moderate pressure settings. The slideable housing allows for effective clamping, which helps in resisting snaking during operations.

• Angle-pad design minimizes snaking.
• Fast installation by removing one bolt.
• Constructed for robust performance in various piping applications.

Product Highlights

Ideal for creating secure connections in plumbing and HVAC systems.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJTZ058GEA

Technical Specifications

• Product Type: Rigid Coupling
• Nominal Diameter Connection 1: DN 200
• Nominal Diameter Connection 2: DN 200
• Outer Pipe Diameter Connection 1: 8.63 inches
• Outer Pipe Diameter Connection 2: 8.63 inches
• Material: Cast iron (ASTM A536 65-45-12)
• Max Operating Pressure Liquid: 348 psi
• Max Medium Temperature: 100.4 °F
