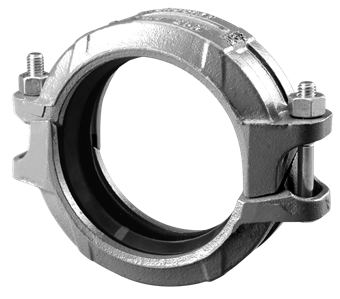

SHURJOINT SJTZ054GEA 4-inch Rigid Coupling

Product Description

The SHURJOINT SJTZ054GEA is a rigid coupling designed for piping applications, suitable for fire mains, straight runs, and valve connections. It features a two-part design with an angle-pad mechanism that allows the housings to slide along during tightening, which results in a strong clamping action. This coupling provides a rigid joint that minimizes movement in long piping installations.

• Constructed from cast iron with ASTM A536 grade
• Hot-dip galvanized for enhanced corrosion resistance
• Equipped with EPDM gasket for reliable sealing

Product Highlights

Ideal for moderate pressure piping systems, the SHURJOINT SJTZ054GEA ensures durable and secure connections, helping to maintain pressure integrity in various applications.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJTZ054GEA

Technical Specifications

• Nominal Diameter Connection 1: DN 100
• Nominal Diameter Connection 2: DN 100
• Size: 4 inches
• Outer Pipe Diameter Connection 1: 114.3mm
• Outer Pipe Diameter Connection 2: 114.3mm
• Material: Cast iron (ASTM A536 65-45-12)
• Sealing Material: EPDM
• Max Operating Pressure: 508 psi
• Max Medium Temperature: 100 °F
• Shape: Straight
• Length: 54mm
• Model Type: 2-part
• Certifications: FM, LPCB, ULC, UL, VdS Quality Marks
