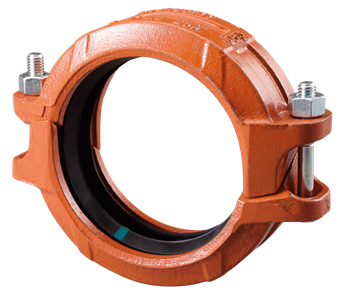

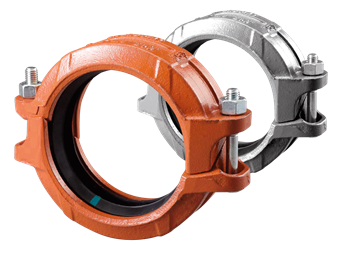

SHURJOINT SJTZ053PEA Model Z05 Rigid Coupling

Product Description

The SHURJOINT Model Z05 rigid coupling with MPN SJTZ053PEA is ideal for moderate pressure piping services. It supports fire mains, long straight runs, and valve connections. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened, which creates an offset clamping action that gives a rigid joint. This design minimizes 'snaking' in long straight runs. The coupling allows for easy swing-over installation with just one bolt needing removal.

• Angle-pad design for improved performance.
• Provides a rigid joint to reduce movement.
• Compatible with grooved pipe connections.

Product Highlights

This coupling has a reliable design that enhances the connection stability in various applications.

Product Information

Standard Information

• Manufacturer Part Number: SJTZ053PEA
• Model: 2-part

Technical Specifications

• Connection Type: Groove (coupling)
• Nominal Diameter Connection 1: DN 80
• Outer Pipe Diameter Connection 1: 88.9mm
• Material Connection 1: Cast iron
• Material Quality Connection 1: ASTM A536 Grade 65-45-12
• Medium Temperature (Continuous): -38°C to 100.4°F
• Max Operating Pressure Liquid: 508 psi
• Shape: Straight
• ETIM Class: EC003024 Fitting with 2 connections
• Length: 48mm
