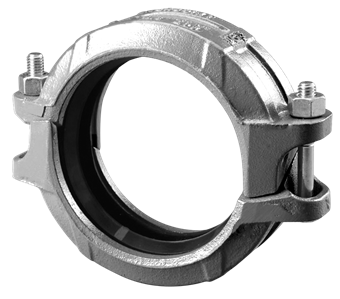

SHURJOINT SJTZ0525GEA Rigid Coupling 2 1/2 Groove Connection

Product Description

The SHURJOINT SJTZ0525GEA is a rigid coupling made for moderate pressure piping. This design includes an angle-pad feature that enables the coupling housings to slide on the bolt pads as they tighten, ensuring a secure clamping action. It is ideal for setups requiring stability and alignment in long, straight runs.

• Angle-pad design ensures reliable housing movement.
• Resists snaking in lengthy runs.
• Suitable for fire mains and valve connections.

Product Highlights

This coupling is designed for use in various plumbing and piping applications. It features groove connections and an EPDM gasket for efficient sealing.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJTZ0525GEA

Technical Specifications

• Connection Type: Groove
• Nominal Diameter: DN 65
• Outer Pipe Diameter: 2.87 inches
• Material: Cast iron (ASTM A536 65-45-12)
• Max Operating Pressure: 508 psi
• Medium Temperature: 100 °F
• Shape: Straight
• Length: 1.85 inches
