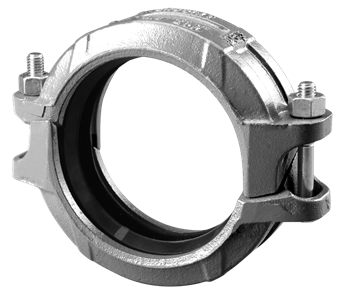

SHURJOINT SJTZ0515GEA Rigid Coupling

Product Description

The SHURJOINT SJTZ0515GEA is a rigid coupling designed for moderate pressure piping services, ideal for fire mains, straight runs, and valve connections. The angle-pad design allows coupling housings to slide along the bolt pads when tightened, providing an offset clamping action that creates a rigid joint, minimizing movement in long, straight runs. Installation is efficient as only one bolt needs to be removed.

• Angle-pad design enables housing movement during tightening.
• Offset clamping action ensures a secure rigid joint.
• Compatible with fire mains, straight runs, and valve connections.

Product Highlights

This rigid coupling effectively links pipes while maintaining integrity under pressure, making it a reliable choice for trade professionals.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJTZ0515GEA

Technical Specifications

• Connection Type: Groove (coupling)
• Nominal Diameter Connection 1: DN 40
• Nominal Diameter Connection 2: DN 40
• Outer Pipe Diameter Connection 1: 1.9 inches
• Outer Pipe Diameter Connection 2: 1.9 inches
• Material: Cast iron (ASTM A536 65-45-12)
• Surface Protection: Hot-dip galvanised
• Max Operating Pressure Liquid: 508 psi
• Max Medium Temperature: 100 °F
