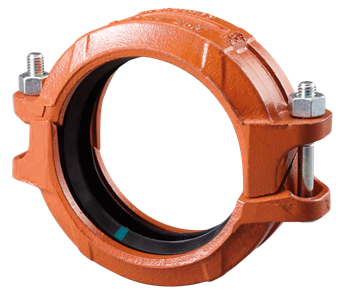

SHURJOINT SJTZ05125PEA Rigid Coupling, 1-1/4, Orange

Product Description

The SHURJOINT SJTZ05125PEA is a rigid coupling designed for piping applications that require moderate pressure handling. This coupling is suitable for fire mains, long straight runs, and connections to valves. The angle-pad design allows the housings to slide during tightening, which creates an offset clamping action and results in a rigid joint that minimizes movement in long runs.

• Angle-pad design promotes rigid joints.
• Fast installation with only one bolt removal.
• Resists movement in extended straight runs.

Product Highlights

This coupling allows for a quick and efficient installation, saving valuable time on the job.

Product Information

Standard Information

• Brand: SHURJOINT
• Model: SJTZ05125PEA

Technical Specifications

• Product Type: Z05E-A
• Material: Cast iron (ASTM A536 65-45-12)
• Connection Type: Groove (coupling)
• Sealing Material: Ethylene-propylene diene monomer rubber (EPDM)
• Nominal Diameter Connection 1: DN 32
• Outer Pipe Diameter Connection 1: 1.67 inches
• Shape: Straight (0 degrees)
• Max Operating Pressure (Liquid): 508 psi
• Max Medium Temperature: 100 degrees F
