Shurjoint SJTM072PEHM M07 QIC Rigid

Product Description

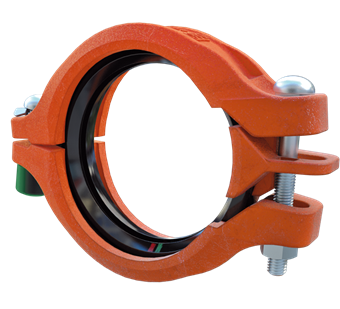

The SHURJOINT SJTM072PEHM Model M07 is a ready to install rigid coupling for general piping applications where rigidity is required. The M07 includes two identical housing segments and a fully constrained wedge. Proper installation requires the tightening of only one bolt/nut.

• 1-bolt design: super fast installation
• Patent pending wedge design
• Applications include valve connections, mechanical rooms, risers and long straight runs.

Product Highlights

The Shurjoint Model M07 rigid coupling is designed for quick installation with its one-bolt system and is suitable for valve connections, mechanical rooms, risers, and long straight runs.

Product Information

Standard Information

• Brand: SHURJOINT
• Manufacturer Part Number: SJTM072PEHM
• Country of Origin: Taiwan

Technical Specifications

• Material connection 1: Cast iron
• Material quality connection 1: ASTM A536 Grade 65-45-12
• Surface protection connection 1: Lacquered
• Surface treatment connection 1: Other
• Material connection 2: Cast iron
• Material quality connection 2: ASTM A536 Grade 65-45-12
• Surface protection connection 2: Lacquered
• Surface treatment connection 2: Other
• Shape: Straight
• Model: 2-part
• Reducing: No
• Eccentric: No
• System specific: No
• Nominal diameter connection 1: DN 50
• Outer pipe diameter connection 1: 60.3mm
• Outer pipe diameter connection 1 (imperial): 2.37"
• Connection 1: Ribbing groove (groove coupling)
• Nominal diameter connection 2: DN 50
• Outer pipe diameter connection 2: 60.3mm
• Outer pipe diameter connection 2 (imperial): 2.37"
• Connection 2: Ribbing groove (groove coupling)
• Main colour fitting: Orange
• Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
• With buffer stud: No
• Length: 48mm
• Length (imperial): 1.89"
• Length of connection 1: 24mm
• Length of connection 1 (imperial): 0.94"
• Working length connection 1: 1.6mm
• Working length connection 1 (imperial): 0.06"
• Length of connection 2: 24mm
• Length of connection 2 (imperial): 0.94"
• Working length connection 2: 1.6mm
• Working length connection 2 (imperial): 0.06"
• Max. operating pressure at 20 00b0C: 52bar
• Max. operating pressure at 20 00b0C (imperial): 754.2psi
• With sealing rings/gaskets: No
• Capped: No
• With connection indicator: No
• With drain valve: No
• With de-aerator: No
• FM quality mark: No
• LPCB quality mark: No
• ULC quality mark: No
• UL quality mark: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• Certified according to NF 545: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Manufacturer: Shurjoint
• Brand: SHURJOINT
• Part #: 500019
• MPN: SJTM072PEHM
• d1: 60.3
• DN1: 2"
• l1: 24
• z1: 2
• d2: 60.3
• DN2: 2"
• l2: 24
• z2: 2
• etim-class: EC003024 Fitting with 2 connections
