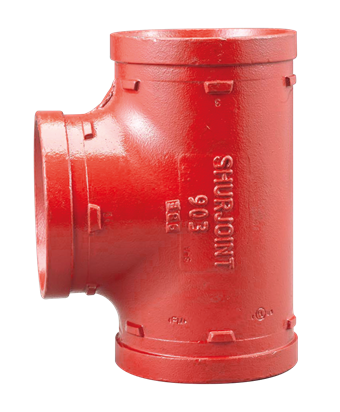

Shurjoint SJT9036P Short Radius Fire Tee

Product Description

The Shurjoint SJT9036P is a short radius tee fitting designed with three grooved connections, made from ductile iron according to ASTM A536 Gr. 65-45-12 standards. This fitting is suitable for fire protection applications and general service needs. It has a 90-degree angle, designed to fit seamlessly into your plumbing or fire protection system.

• Constructed from durable ductile iron.
• Compatible with Model 7707 couplings for reliable connections.
• Ideal for fire protection and general service applications.

Product Highlights

This fitting excels in high-pressure environments while ensuring safety and compliance in fire protection systems.

Product Information

Standard Information

• Fitting Model: T-piece
• Angle: 90 degrees

Technical Specifications

• Material: Ductile iron
• Material Quality: ASTM A536 Grade 65-45-12
• Surface Protection: Lacquered
• Nominal Diameter Connection 1: DN 150
• Outer Pipe Diameter Connection 1: 168.3 mm (6.63 inches)
• Connection 1 Type: Groove
• Length of Connection 1: 140 mm (5.51 inches)
• Weight: 17.17 lb
• Color: Orange
