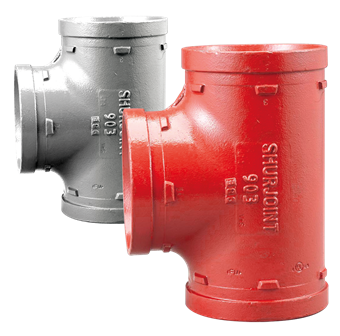

Shurjoint SJT9034G Short Radius Tee 4

Product Description

The Shurjoint SJT9034G is a four-inch short radius tee designed for fire protection and general service applications. It features grooved ends and is made from ductile iron following ASTM A536 Grade 65-45-12 standards. This fitting is compatible with Shurjoint Model K-9 and Z05 rigid couplings, which helps to avoid bolt pad interference. The fitting can handle pressures compatible with Model 7707 couplings and includes three connections for versatile use.

• Designed for fire protection and general service applications.
• Made from durable ductile iron per ASTM A536 Grade 65-45-12.
• Compatible with Shurjoint Model K-9 and Z05 rigid couplings.

Product Highlights

This fitting is ideal for various piping systems where strong and reliable connections are critical.

Product Information

Standard Information

• MPN: SJT9034G
• Size: 4 inches

Technical Specifications

• Dimensions: 8.03 inches x 4.50 inches x 6.30 inches
• Weight: 7.94 lb
• GTIN: 08711985434545
• Connection 1: Groove
• Material: Ductile iron
• Pressure Rating: Compatible with Model 7707 couplings
• Quality Marks: FM, ULC, UL
• Angle: 90 degrees
