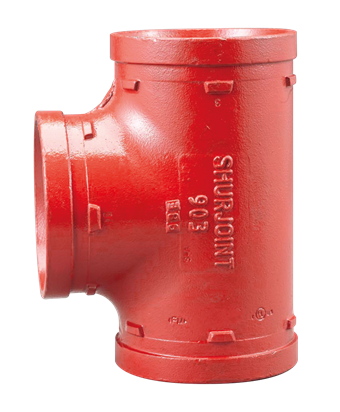

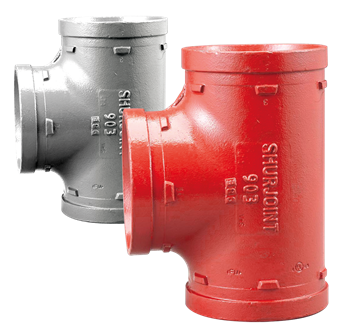

Shurjoint SJT90325P Short Radius Fire Tee

Product Description

The Shurjoint SJT90325P is a short radius tee fitting designed for use in fire protection systems and general service applications. This fitting is made from ductile iron according to ASTM A536 Grade 65-45-12 for enhanced durability. It includes three grooved connections built to work with Model 7707 couplings.

• Constructed from ductile iron per ASTM A536 Gr. 65-45-12
• Features three grooved connections
• Suitable for fire protection and general service

Product Highlights

Reliable for use within fire protection systems and suitable for general piping needs.

Product Information

Standard Information

• Brand: Shurjoint
• Type: Short Radius Tee Fitting

Technical Specifications

• MPN: SJT90325P
• Material: Ductile Iron
• ETIM Class: EC003025
• Connections: Three Grooved
• Angle: Ninety Degrees
• Nominal Diameter: DN 65
• Outer Pipe Diameter: 73 mm (2.87 inches)
• Length of Connection: 76 mm (2.99 inches)
• Weight: 2.87 lbs
• FM Quality Mark: Yes
• UL Quality Mark: Yes
