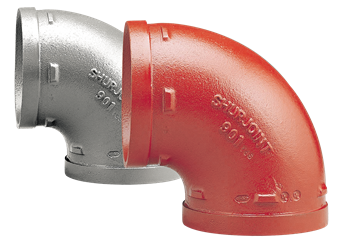

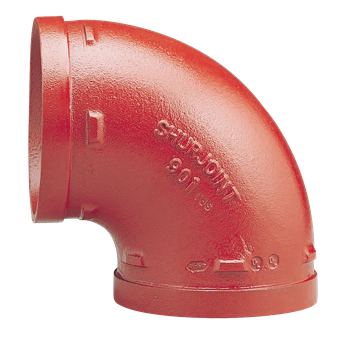

SHURJOINT SJT9018P 90 Degree Short Radius Elbow

Product Description

The SHURJOINT SJT9018P is a 90-degree short radius elbow fitting made from durable ductile iron per ASTM A536 Gr. 65-45-12. This fitting is designed with grooved ends for secure connection and is primarily intended for fire protection applications. It can also meet general service requirements, making it versatile.

• Constructed from ductile iron to meet ASTM A536 standards
• Features grooved ends for easy connection
• Certified for fire protection and general service usage

Product Highlights

The SJT9018P is reliable for both fire protection systems and general service use. Its construction and design ensure compatibility with Model 7707 couplings.

Product Information

Standard Information

• MPN: SJT9018P
• Brand: SHURJOINT

Technical Specifications

• Angle: 90 degrees
• Connection Type: Groove
• Material: Ductile iron (ASTM A536 65-45-12)
• Nominal Diameter Connection 1: DN 200
• Outer Pipe Diameter Connection 1: 8.63 inches
• Max Operating Pressure (Liquid): 292 psi
• Length: 11.24 inches
• Bend Radius: 8.63 inches
• Finishing: Varnished
• Certifications: FM, LPCB, ULC, UL, VdS
• Color: Orange
