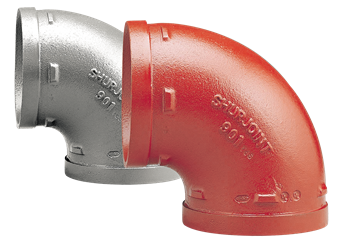

SHURJOINT SJT9016P Short Radius 90 Degree Elbow

Product Description

The SHURJOINT SJT9016P is a short radius 90 degree elbow made for fire protection and general service applications. Constructed from ductile iron as per ASTM A536 Gr. 65-45-12, this fitting is designed for durability. It includes grooved-end connections, which are compatible with Model K-9 and Z05 rigid couplings. The fitting pressure ratings align with Model 7707 couplings for reliability.

• Constructed from ASTM A536 Grade 65-45-12 ductile iron.
• Compatible with rigid couplings for better installation.
• Grooved connections on both ends for ease of assembly.

Product Highlights

Product Information

Standard Information

• Brand: SHURJOINT
• Series: Shurjoint

Technical Specifications

• Materials: Ductile iron
• Max Operating Pressure Liquid: 292 psi
• Bend Angle: 90 degrees
• Connection Type: Groove
• Weight: 12.94 lbs
• Dimensions: 8.82 inches x 6.63 inches x 8.82 inches
• Quality Marks: FM, ULC, UL
