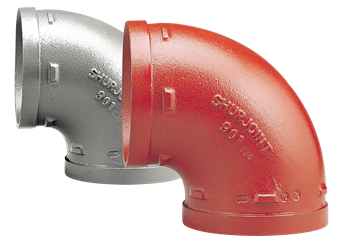

SHURJOINT SJT9014P Short Radius 90 Degree Elbow

Product Description

The SHURJOINT SJT9014P is a short radius 90 degree elbow fitting with grooved ends. This fitting is made from ductile iron and meets ASTM A536 Grade 65-45-12 standards, making it suitable for fire protection and various general service applications. It connects easily with Model K-9 and Z05 rigid couplings and is designed for reliability in high-pressure settings.

• Short radius design for tight spaces.
• Constructed from durable ductile iron per ASTM standards.
• Compatible with common coupling types.

Product Highlights

The SHURJOINT SJT9014P fitting offers a robust solution for plumbing and fire protection systems. Its grooved ends ensure a secure connection with minimum risk of leakage.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT9014P

Technical Specifications

• ETIM class: EC003024 Fitting with 2 connections
• Material connection 1: Cast iron
• Material quality connection 1: ASTM A536 Grade 65-45-12
• Material connection 2: Cast iron
• Material quality connection 2: ASTM A536 Grade 65-45-12
• Bend angle: 90 degrees
• Connection 1: Groove
• Connection 2: Groove
• Max operating pressure at 20 degrees C: 20.1 bar (291.53 psi)
• FM quality mark: Yes
• ULC quality mark: Yes
• UL quality mark: Yes
